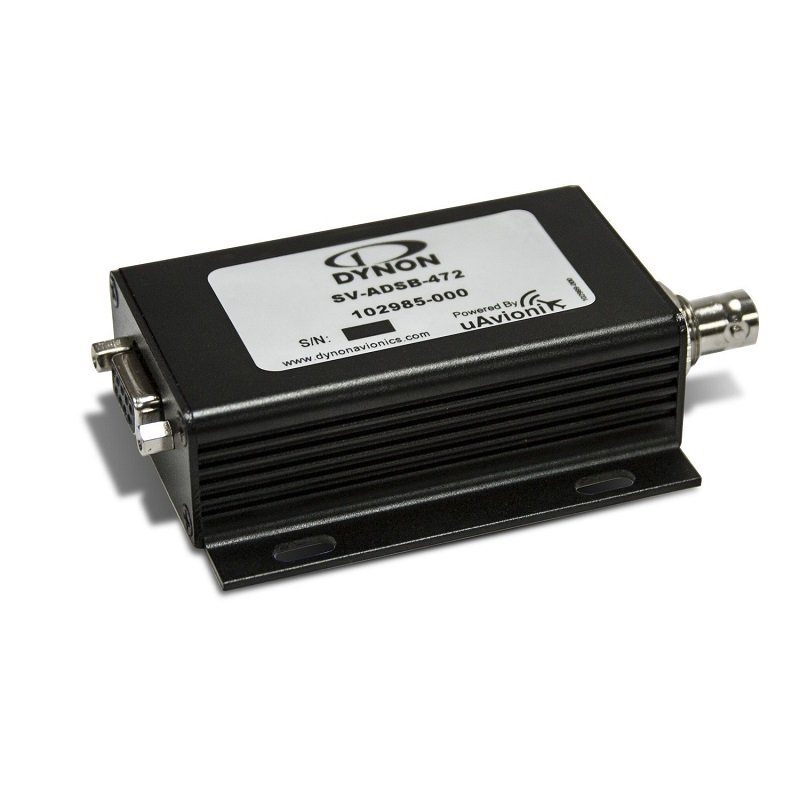

The dual band SV-ADSB-472 receives ADS-B traffic via 978 MHz (UAT) and 1090 MHz. In the US, it also receives free text and graphical weather from the FAA’s network of ADS-B ground stations. Unlike portable ADS-B receivers, you get FULL ADS-B and radar traffic when you pair this with our Mode-S transponder. The remote mounted receiver utilizes an externally mounted antenna for superior ADS-B reception (Dynon 2020).
TFR Information: TFR NOTAMs are displayed graphically on the navigation map.
ADS-B Weather: Subscription-free weather displayed on SkyView, including NEXRAD radar, METARs and TAFS. Airport weather data can be displayed for nearest airports or for a specific airport identifier.
ADS-B Traffic: Receives ADS-B TIS-B traffic with precise location, altitude, speed, and direction. Includes both traffic broadcast from other aircraft equipped with ADS-B UAT transmitters, and data broadcast from ADS-B ground stations. Requires a Dynon SV-XPNDR-261/262 or Garmin GTX 330 ES, currently the only transponders which meet the requirements.
Antenna Information: The SV-ADSB-472 requires its own antenna; it cannot share the transponder antenna. The selected antenna should be installed according to the manufacturer’s instructions. A UAT-specific antenna or a transponder antenna may be used with the SV-ADSB-472. The SV-ADSB-472 antenna should not be installed within 2 feet (24 inches) of a 1090 MHz transponder (including the SV-XPNDR-261/262) antenna.
Upgrading from SV-ADSB-470 to SV-ADSB-472
• The SV-ADSB-472 is pin-compatible with the SV-ADSB-470. Simply move the DB9 and BNC connectors and the electrical hook-up is complete.
• The connectors are in different locations so an extender cable might be useful in situations that do not have enough service loop. It is preferable to extend the serial connection rather than the BNC cable for optimum sensitivity and range.
• Once mounted and wired, be sure to update the serial settings: SETUP MENU > SYSTEM SETUP > SERIAL PORT SETUP > SERIAL PORT x SETUP (the serial port you wired the SV-ADSB-472 to) > SERIAL IN DEVICE > SV-ADSB-472 > ACCEPT (button).
The SV-ADSB-472 is approximately 7″ x 4.5″ x 1.1″ in outside dimensions.
Dynon part number: 102985-000
