Description

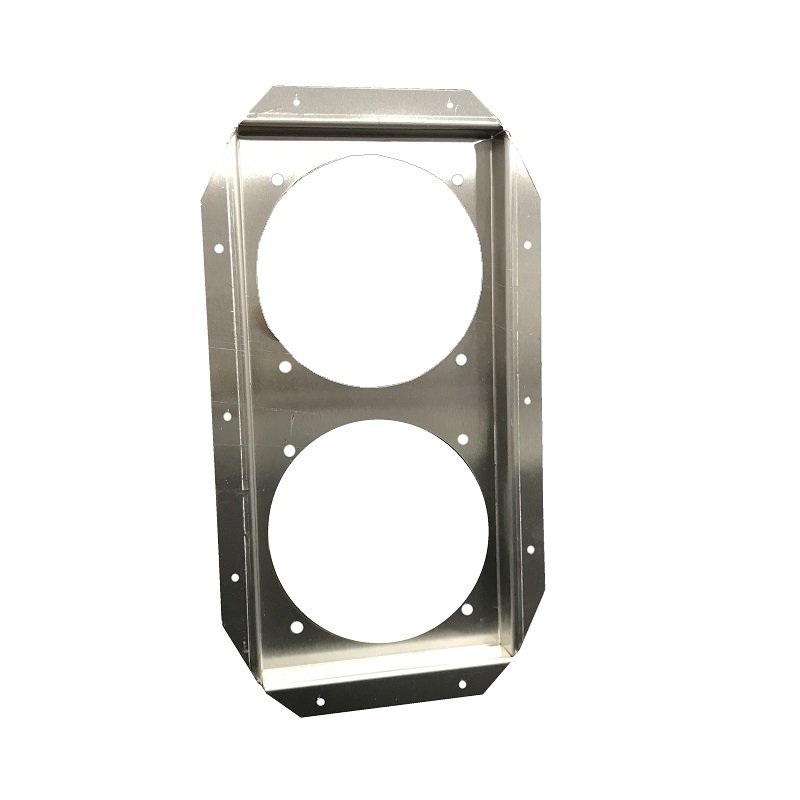

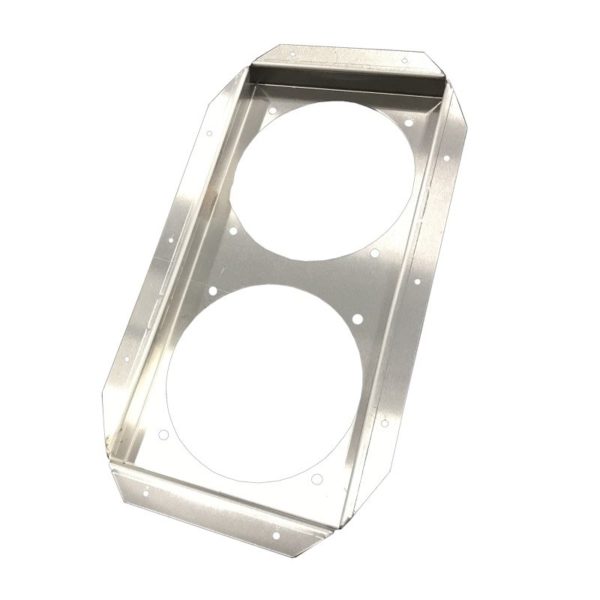

Garmin G5 Dual Flush Mount Bracket
Create a clean, professional-looking installation for two Garmin G5 electronic flight instruments with this dual flush mount bracket from SteinAir.

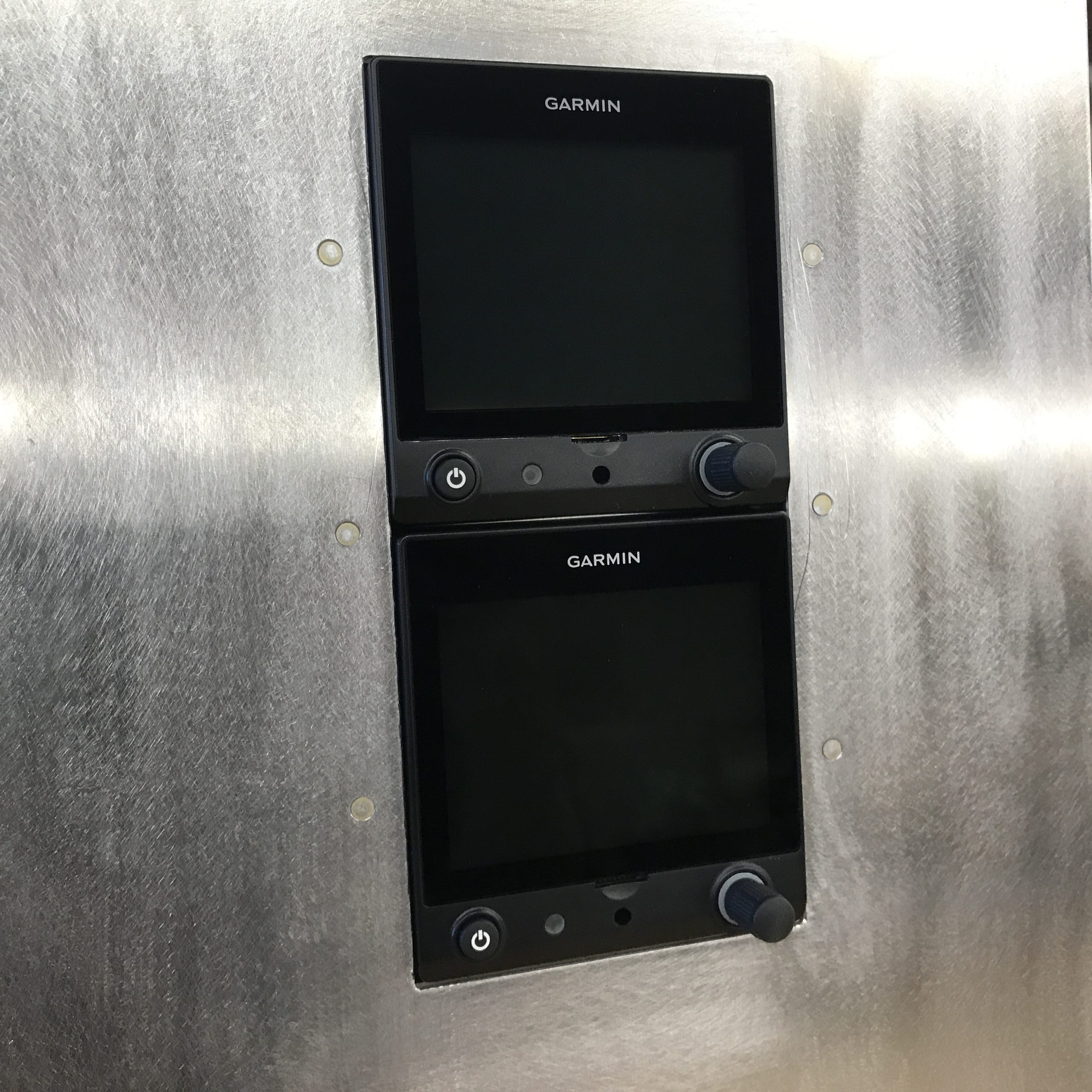

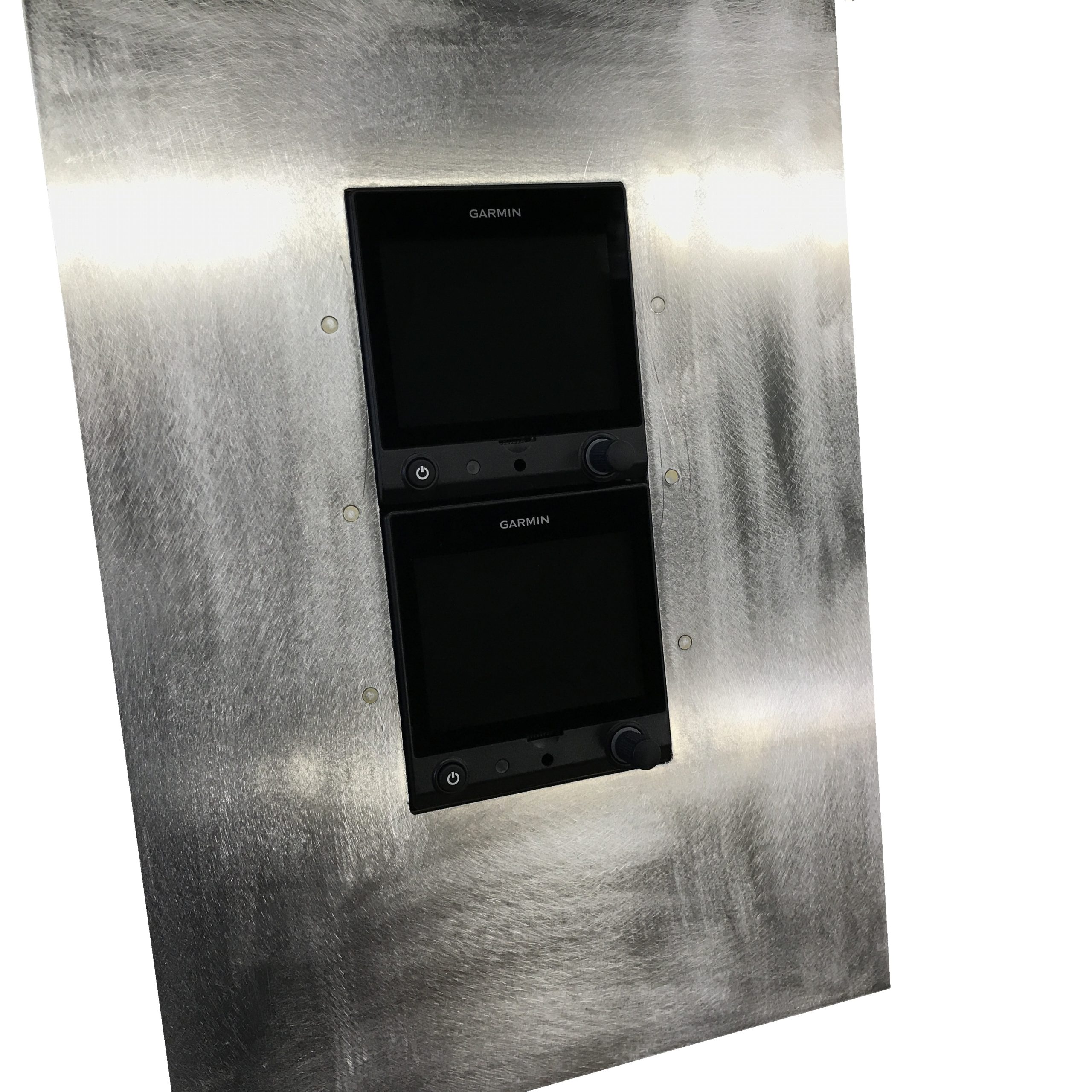

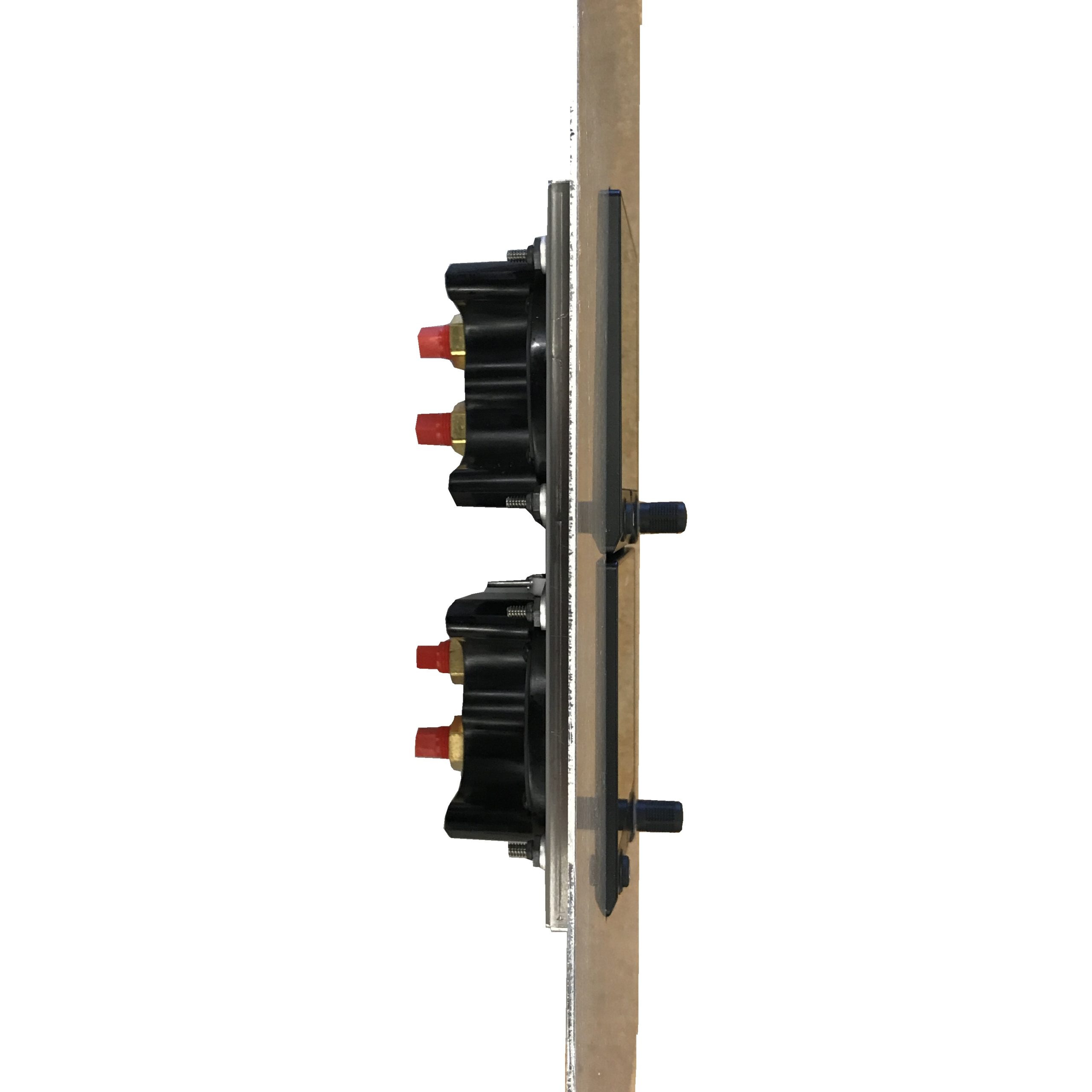

Designed specifically for a stacked vertical configuration, this aluminum mounting bracket positions two G5 units together while creating a flush-mount appearance in the aircraft instrument panel. The bracket mounts behind the panel, allowing the G5 bezels to sit neatly within the panel surface.
The bracket is secured directly to the instrument panel using #3 rivets. Six pre-drilled mounting holes are provided for attaching the bracket to the panel, providing a straightforward and secure installation.
Features
- Designed to mount two Garmin G5 displays
- Vertical, stacked G5 configuration
- Creates a clean flush-mount appearance
- Fabricated from aluminum
- Six pre-drilled holes for #3 rivets
- Bracket mounts directly to the aircraft instrument panel
Note: This listing is for the dual flush mount bracket only. Garmin G5 electronic flight instruments, rivets, and other installation hardware are not included.
Installation Drawing
Planning your panel cutout? A detailed installation drawing is provided with the bracket. The drawing includes the panel cutout dimensions, overall bracket dimensions, and mounting hole locations and sizes for the six #3 rivets used to secure the bracket to the panel.
Review the drawing before cutting your panel to verify the dimensions and mounting locations will work with your specific installation.
G5 Dual Flush Mount Bracket Installation Drawing (PDF)
