Sold by the foot. ( .42 / foot )
14 gauge wire
Aircraft quality wire is manufactured to MIL-W-22759/16 specs. It features standard tin-plated copper conductor with Tefzel insulation. Wire is rated for 600 volts rms & 150 degrees C.
FAA AC43.13-1B recommends 20 amp CB protection for 14awg wire.
See FAA AC 43.13-1B Tables 11-3 & 11-9 for protection & rating details.
See Military Specification Sheet MIL-W-22759-16a for wire construction details.

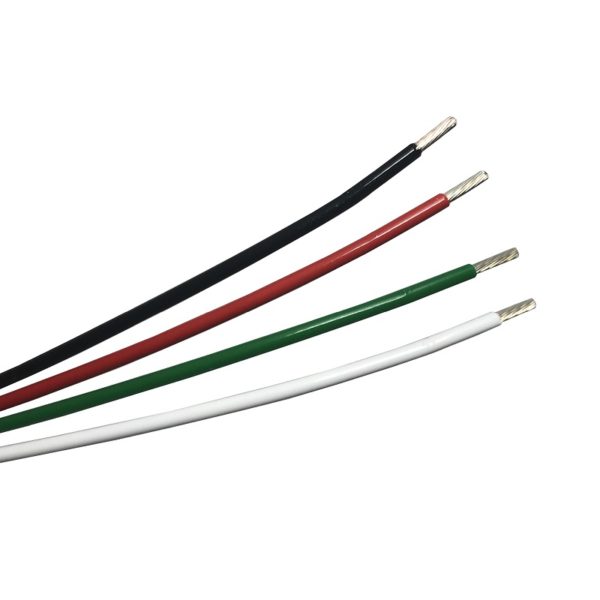

We also offer 14 gauge in a black/red twisted pair. See AWG14RBtwist
