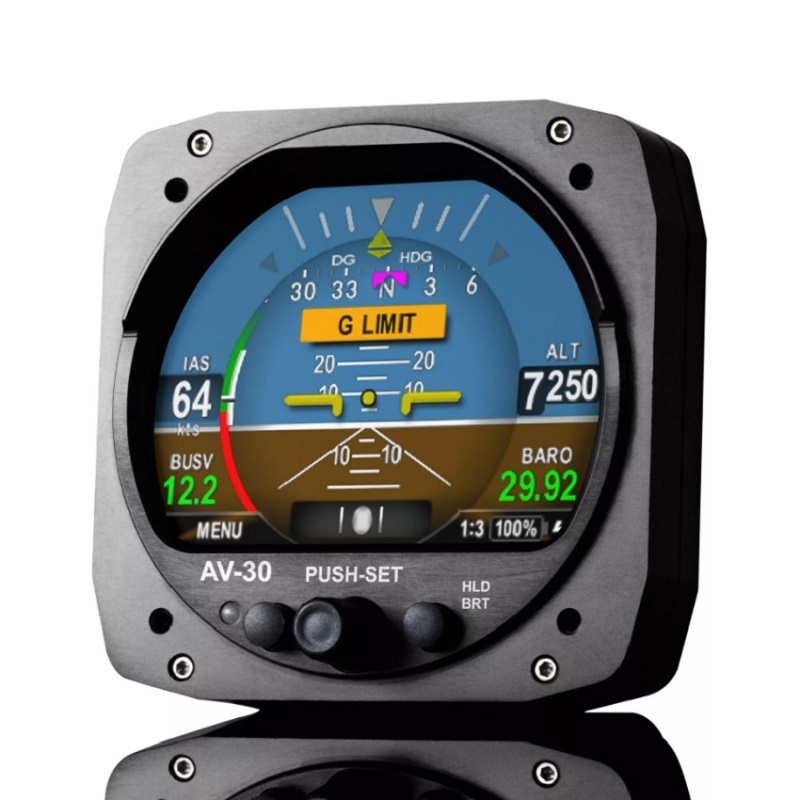

The uAvionix AV-30 is a fully digital multi-mode instrument that mounts in the legacy 3 1/8” round instrument panel. It can be field configured as either an Attitude Indicator (AI) or a Directional Gyro (DG) indicator. It is fully self-contained with dual-precision inertial and pressure sensors and allows for a wide variety of pilot customization.
When configured as an AI, primary attitude and slip are always displayed. The unused portions of the display area can be customized by the pilot to show a variety of textual and graphical data-overlay fields. Three pages may be customized by the pilot while a fourth page presents a fully decluttered view of only attitude and slip.
When configured as a Directional Gyro (DG), direction of flight information is presented. The flight direction can be configured to be presented as non-slaved heading or inertially stabilized GPS track when connected to an external GPS navigator. Multiple display presentations, including compass rose, GPS HSI, and GPS Arc views can be selected by the pilot. The unused portions of the display area can similarly be configured for a variety of textual data-overlays. In both operating modes, the pilot may select from multiple visual styles which are intended to improve visual compatibility with legacy aircraft UAV-1003947-001, AV-30-C, Installation Manual 8 Revision C instrumentation and preserve the look-and-feel of older aircraft applications.
A wide variety of supplemental functions, including audio alerting,derived angle of attack presentation, g-load display, and more are provided. An internal, rechargeable LiPo battery allows for operation for a nominal 2 hours in the event of aircraft power loss and 30 minutes minimum under all temperature conditions.
AV-30 fits in your existing 3” panel slot seamlessly. By mounting from behind, it preserves the “round dial” look, and eliminates the need for cutting or replacing your panel.
The AV-30 is innovative and downright beautiful, and looks right at home in your 6-pack. The AV-30 display lets you keep your vintage, analogue look while modernizing to digital precision. You no longer need to consider going full glass at the cost that entails, or cutting in a big square hole in order to modernize your panel.
AV-30 features include: attitude indicator, altitude, airspeed, AoA, G-meter, bus voltage, directional gyro, and more. You might think there couldn’t possibly squeeze any more in. Oh, but you would be wrong, they have plans that range from autopilot integration, transponder control, and a Cockpit Display Traffic Indicator (CDTI) to give you visual and aural ADS-B traffic alerts.
– Primary Attitude (AI Mode)
– Primary Slip (AI Mode)
– Primary Direction of Flight Indication (DG Mode)
– Indicated Airspeed
– Angle Of Attack
– Vertical Trend
– Vertical Speed
– Set Altitude
– Bus Voltage
– G Load
– Outside Air Temp
– True Airspeed
– Density Altitude
– GPS Navigator / Waypoint Data
– GPS Navigator Nav Data
– GPS Navigator Route Line
– Heading Bug
Audio and Visual Alerting Functions:
– AoA Alerting
– G Limit Alerting
– Excessive Roll Alerting
– Internal Battery Operation
– Auto / Manual Brightness
uAvioinx part number: UAX-90052-01
