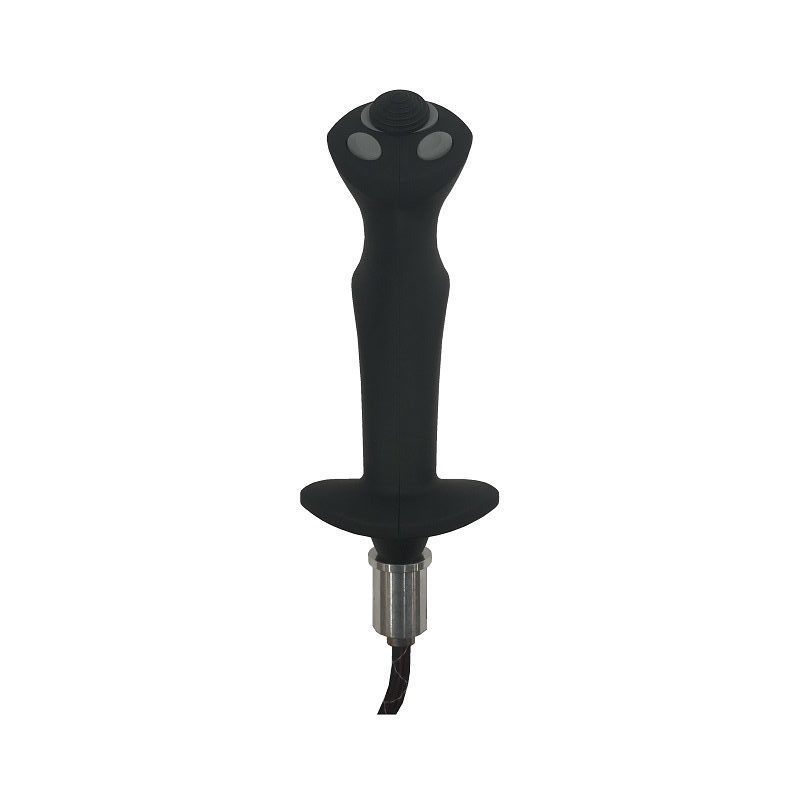

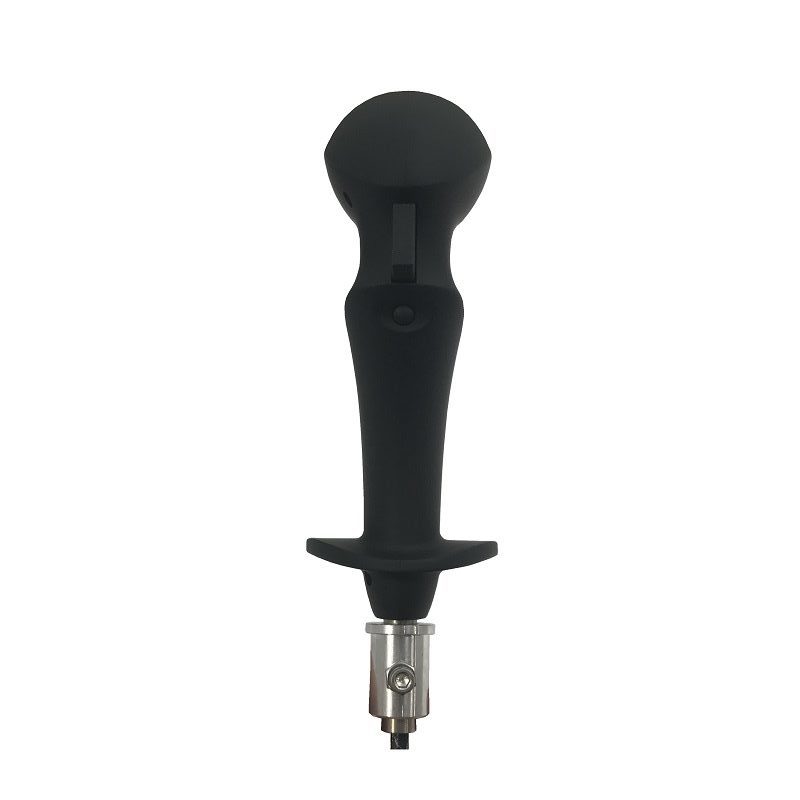

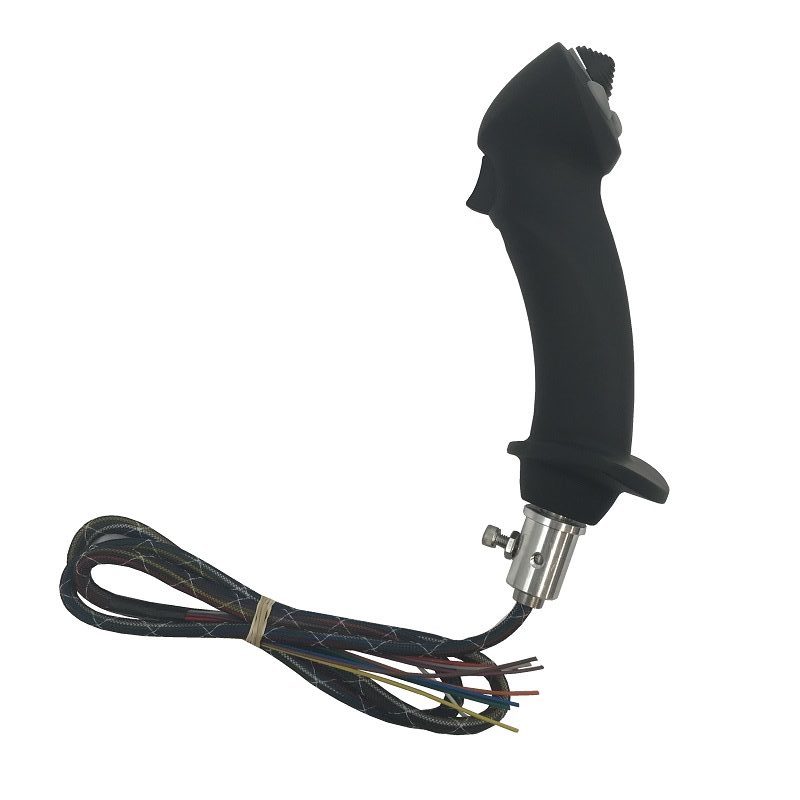

Wired with 22 gauge wiring 7/16 stainless steel shaft with custom machine bushings to fit any diameter shaft*. Comfortable grip. Made with lightweight glass-filled Wellman nylon. Rotates easily to any position. Two top pushbuttons and a Four-way hat.
- 16 oz.
- For use in Experimental Aircraft only
- Eight function control stick
- Four way hat switch
- Two face buttons
- Trigger button and index button
- Ambidextrous design
- Soft plastic
- Assembled in Carlsbad, CA

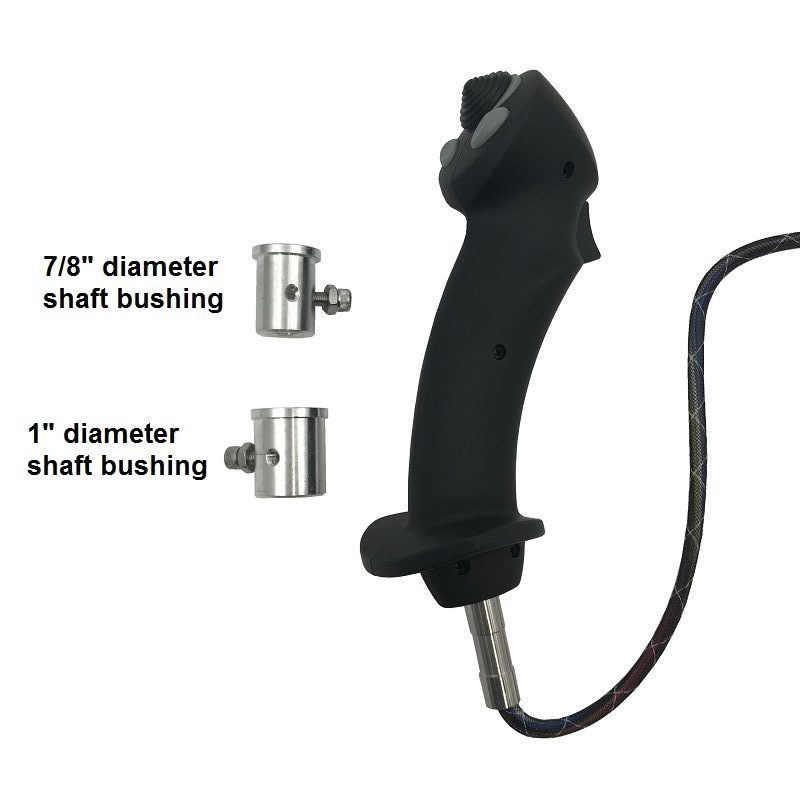

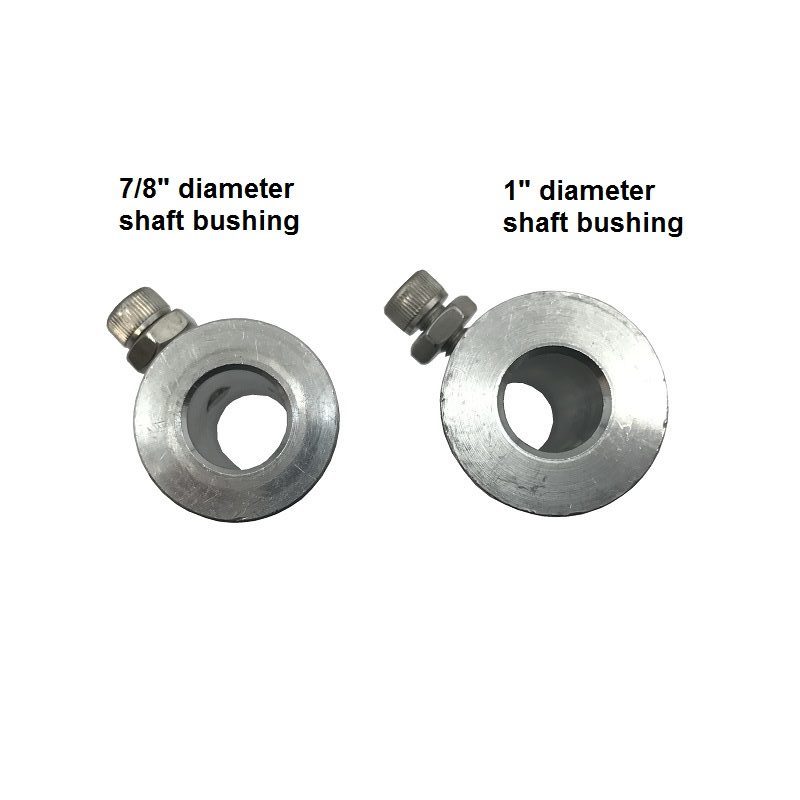

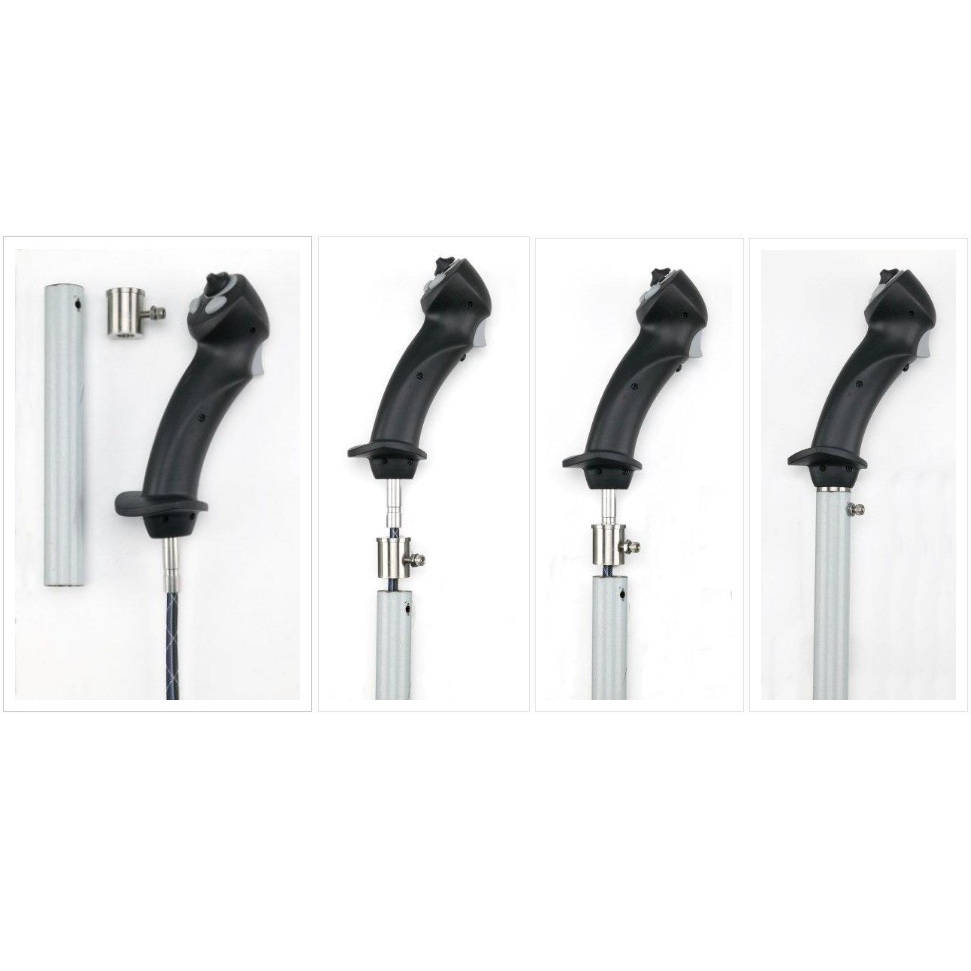

*CS-8 stick grips come assembled without shaft bushings. The available options are 1″ diameter or 7/8″ diameter. Please specify which one you require based on info below:
Choose 7/8″ (OD) diameter if;
- aircraft is RV-10, -14, -12, & RV-8 (rear).
Choose 1″ (OD) diameter if;
- aircraft is RV-3, -4, -6, -7, -9, & RV-8 (front).
Note: Stick grips sold individually.
Q: Do I need a relay deck?
A: Yes, if you are using a switch to drive a motor. For example, flaps/trim, speed-brakes or smoke.
Q: Do I need a relay deck if I am using VP or any other type of switching box?
A: No, all switch boxes have their own relays built into the units. Check with the manufacturer.

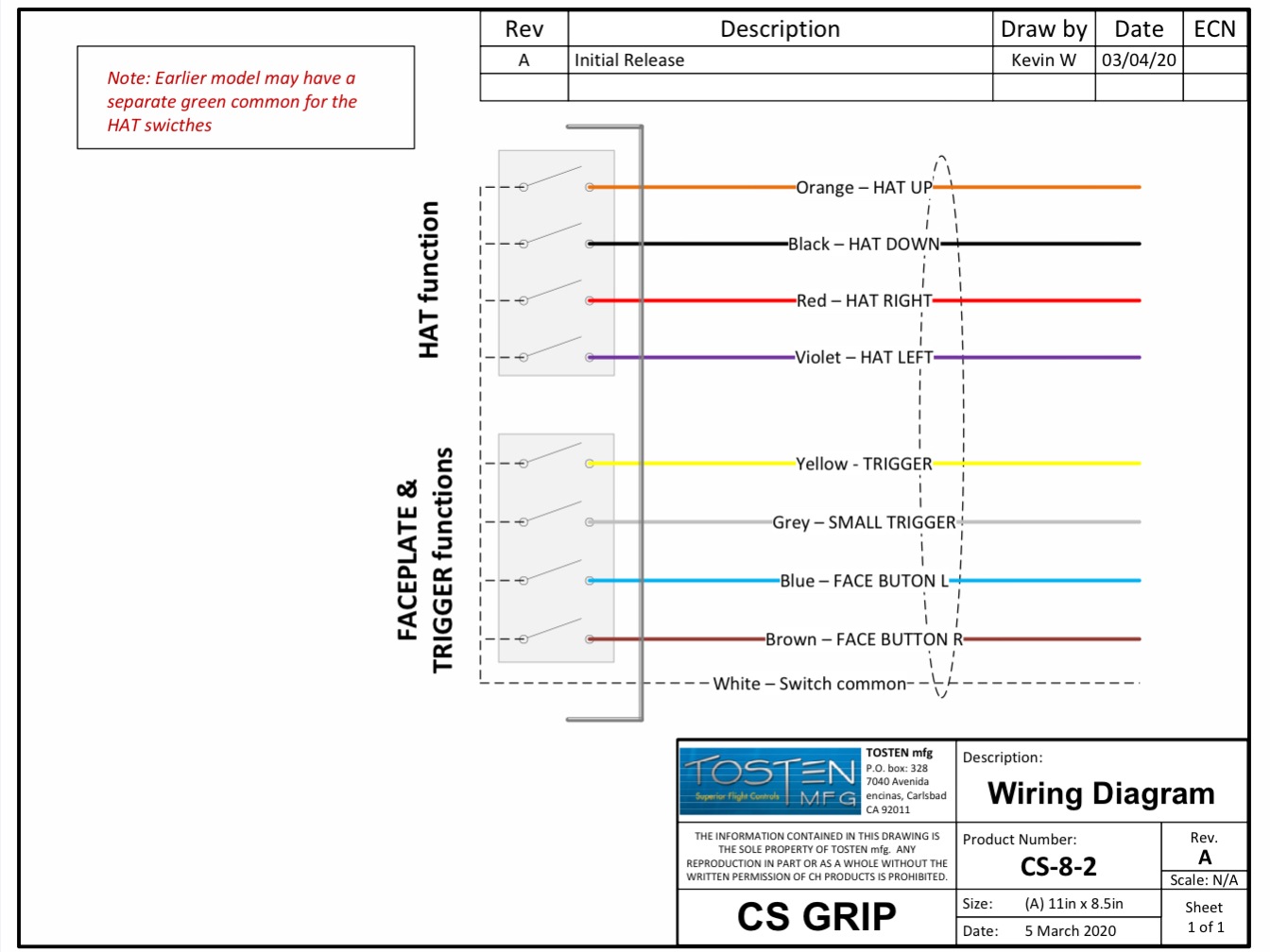

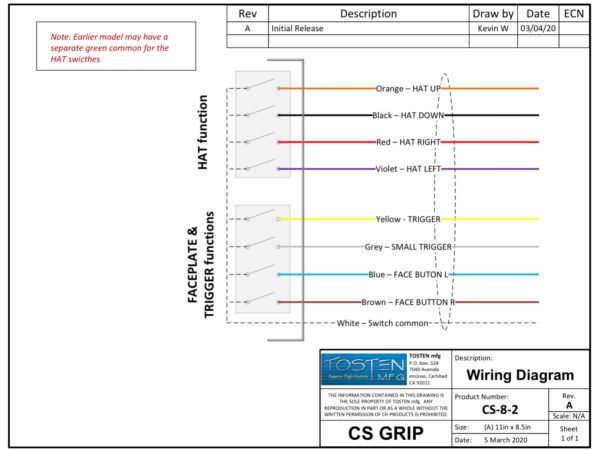

Tosten CS-8 wiring schematic
