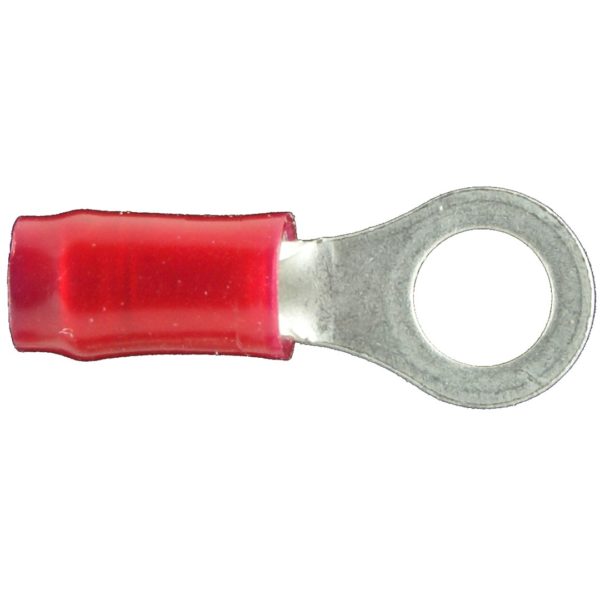

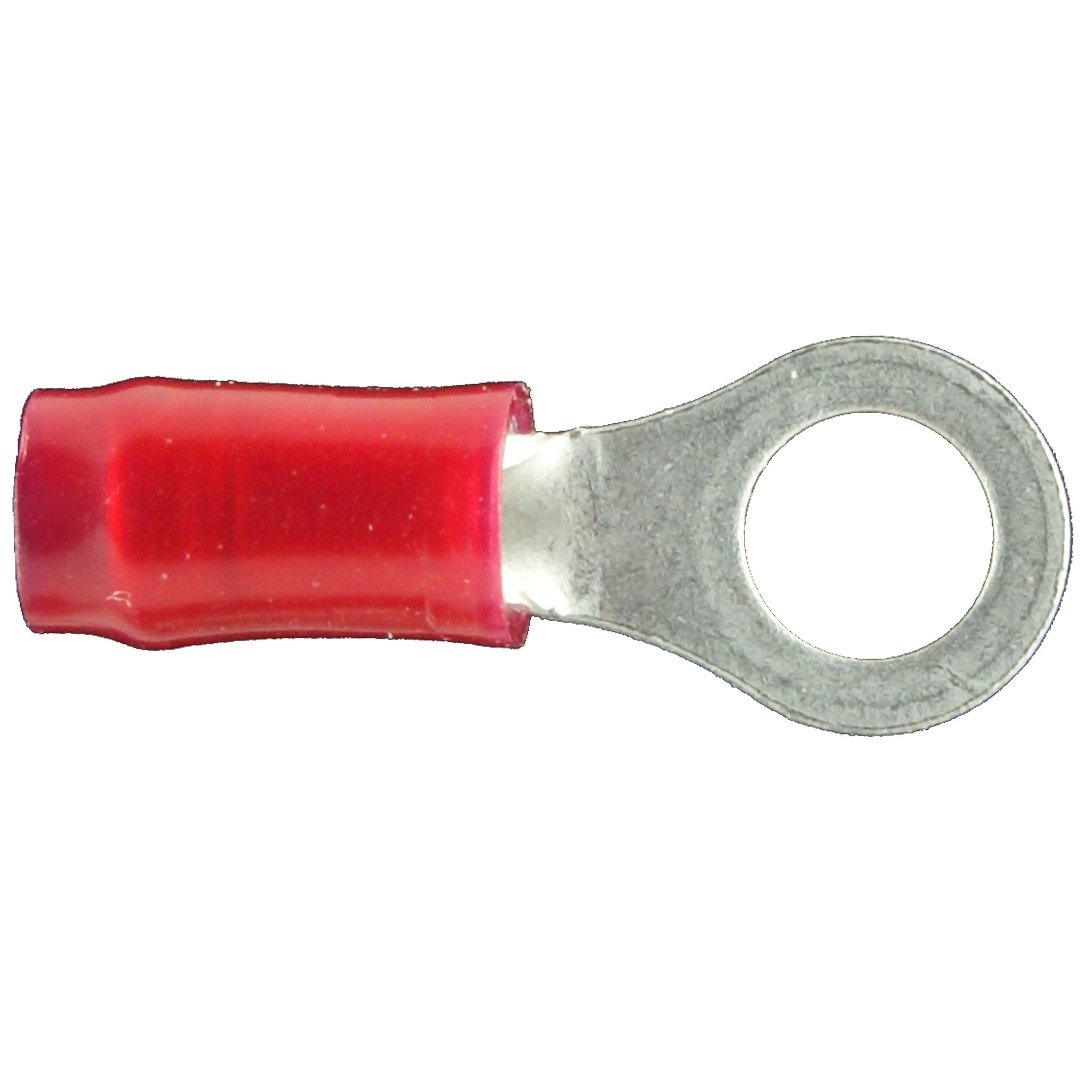

RED insulated 22-18awg crimp Ring Terminal for #10 screws & studs.
These terminals are for stranded Tefzel type aircraft wires.
The RED color of the insulation indicates the 22-18awg wire size.
The funnel entry feature allows wire insertion without “turned back” wire strands.
The terminals are temperature rated for use from -40 to +105°C & rated for 300 volts.
1/4″ 2:1 heat shrink tubing can be used for labeling over the terminals insulation.
Terminals are sold individually.
