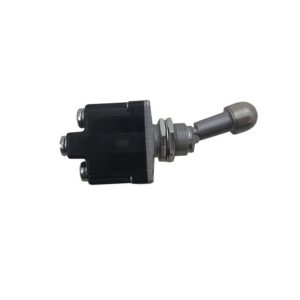

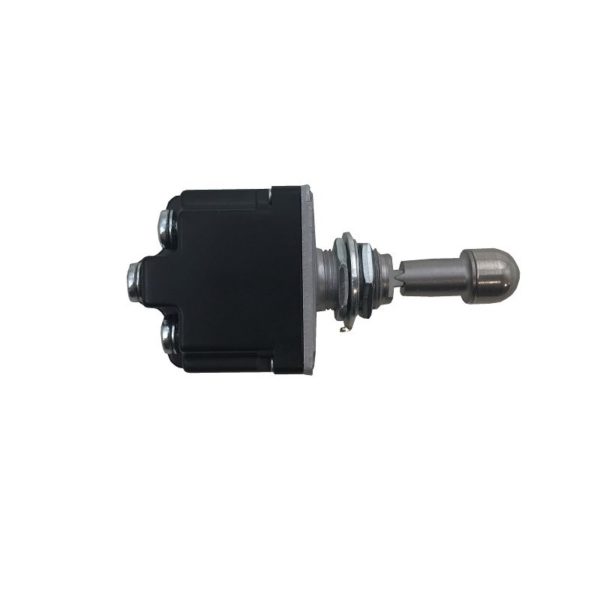

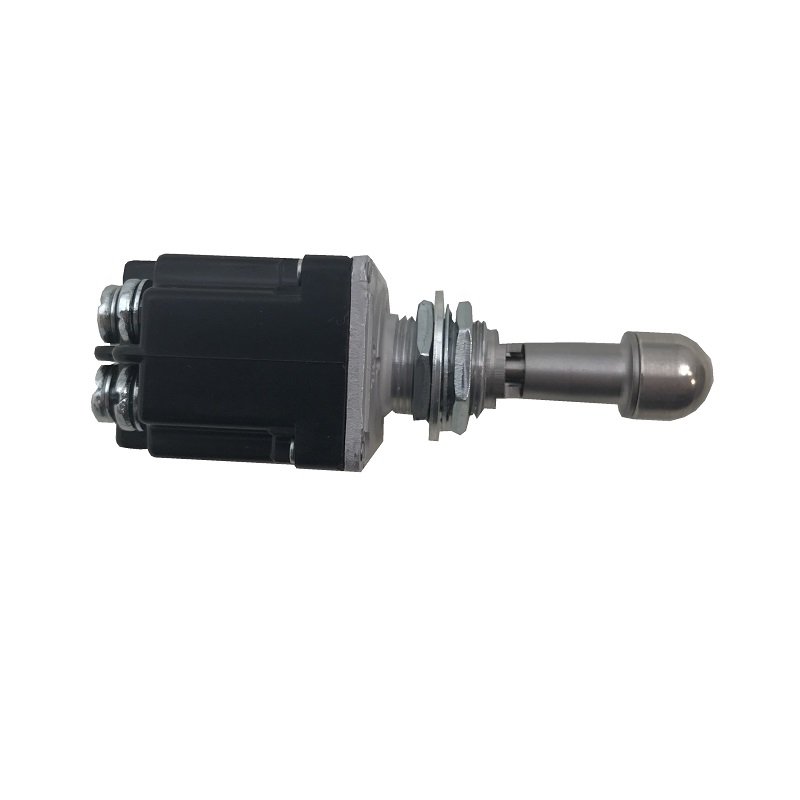

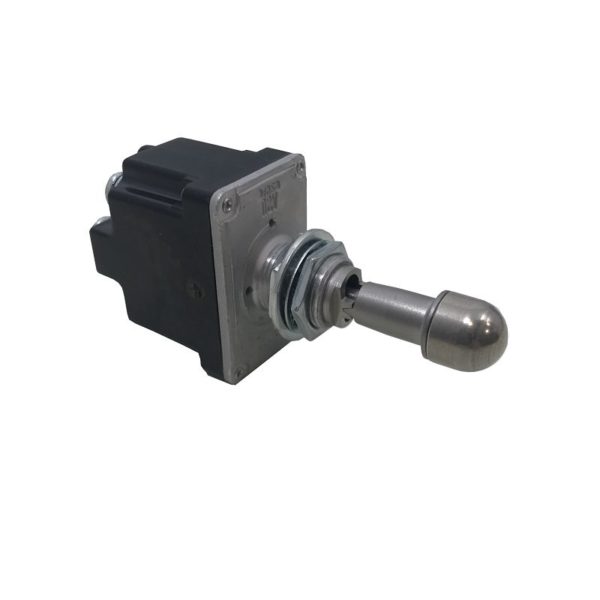

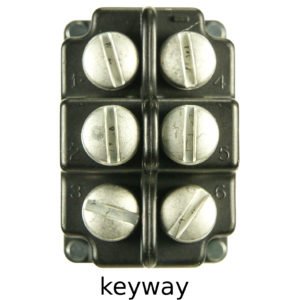

Locking Toggle Switch DPDT On/On/On

Description

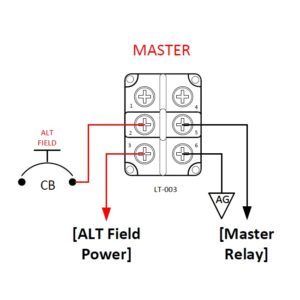

Commonly used as a battery / alternator master, progressive nav/strobe, etc..

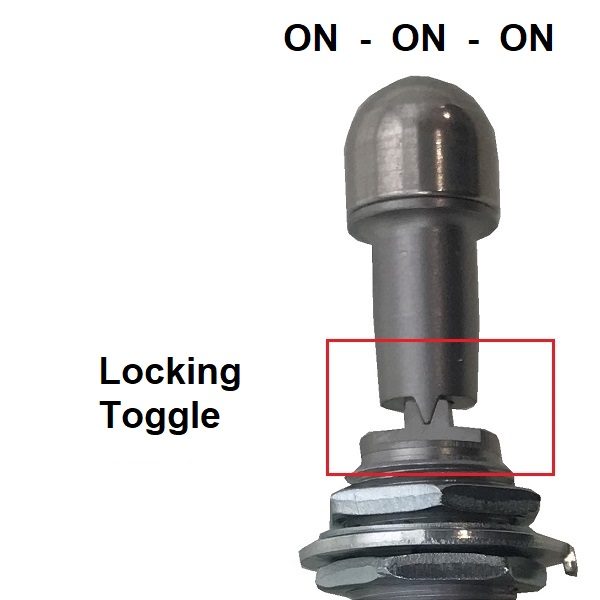

Locked in all three positions.

Mount in a 15/32 hole.

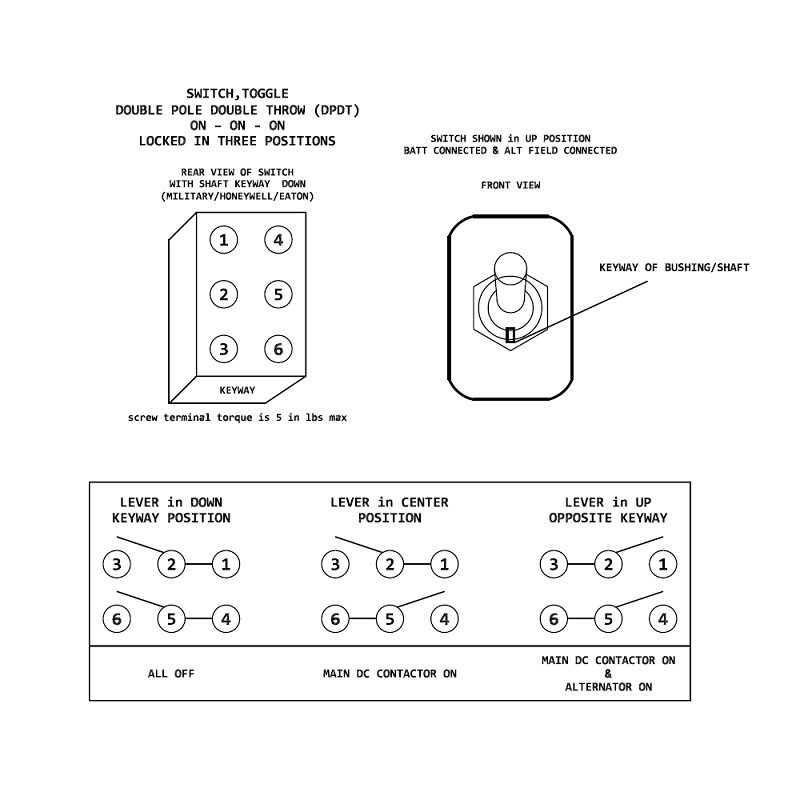

LT-003 Master Switch

LT-003 “Typical use as MASTER” pdf

Make connection using #6 ring terminals.

• SA-005: RED insulated 22-18awg crimp Ring Terminal for #6 screws & studs
• SA-007: BLUE insulated 16-14awg crimp Ring Terminal for #6 screws & studs.

Alternative switches with similar logic:

• 2-10: Carling Toggle Switch. DPDT On-On-On
• 2TL1-10: Honeywell Toggle Switch. DPDT On-On-On

Manufacturer part number: MS27408-4A
