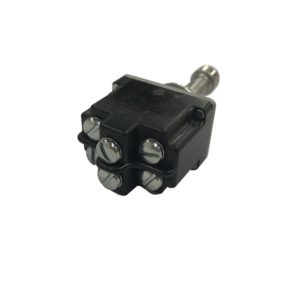

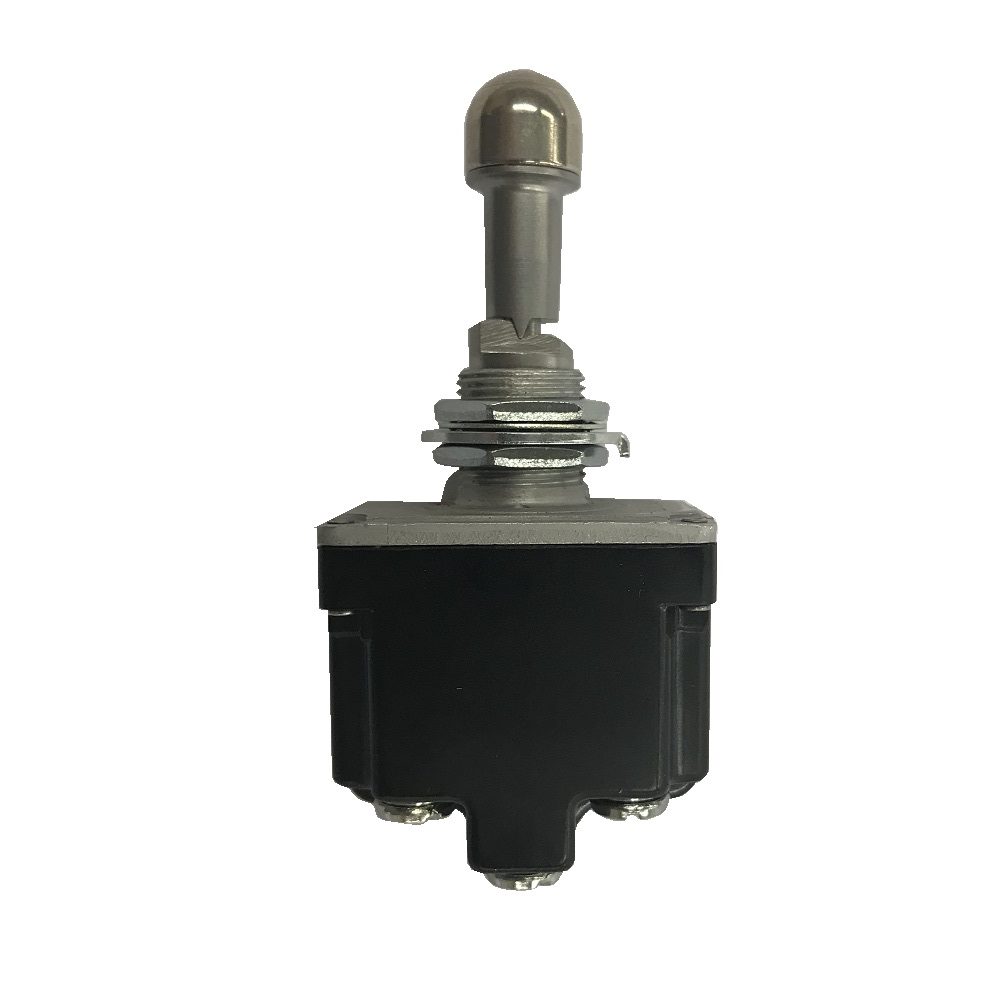

This switch is commonly used for the ON/OFF & (TEST) functions needed by PMAG ignition.
One switch is needed for each PMAG ignition.
Switch locks in the center (running) position & the down (off) position.
To test a PMAG, switch to the up (momentary) position.
The toggle lever must be pulled back to allow switching out of the locking positions.
The switch mounts in a 15/32 hole & has a 20 amp rating & screw terminals.

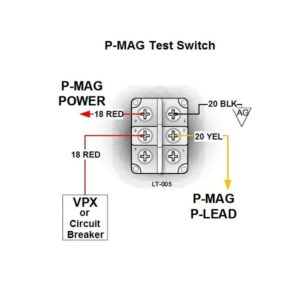

See LT-005 diagram for wiring details.
Make connection using #6 ring terminals.
