Amber LED Indicator Light, 12V

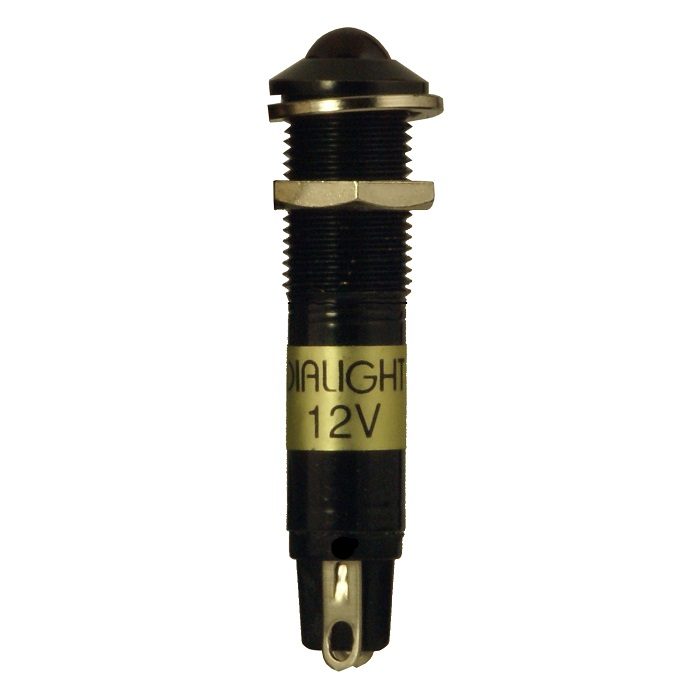

These are high quality anodized black metal cased 12VDC colored LED Lights. They are medium intensity so they are just right. The Actual LED bulb is 1/4″ in diameter and mounts in a 3/8″ hole. Approximately 1.25″ in depth with solder terminals.

Lamp draws 0.015 amps (15ma) at 12volts DC.

Note: There is a white mark on terminal which indicates a positive (+) connection.

Additional Information

Weight0.014 lbs
Dimensions1.75 x .4 x .4 in
