Description

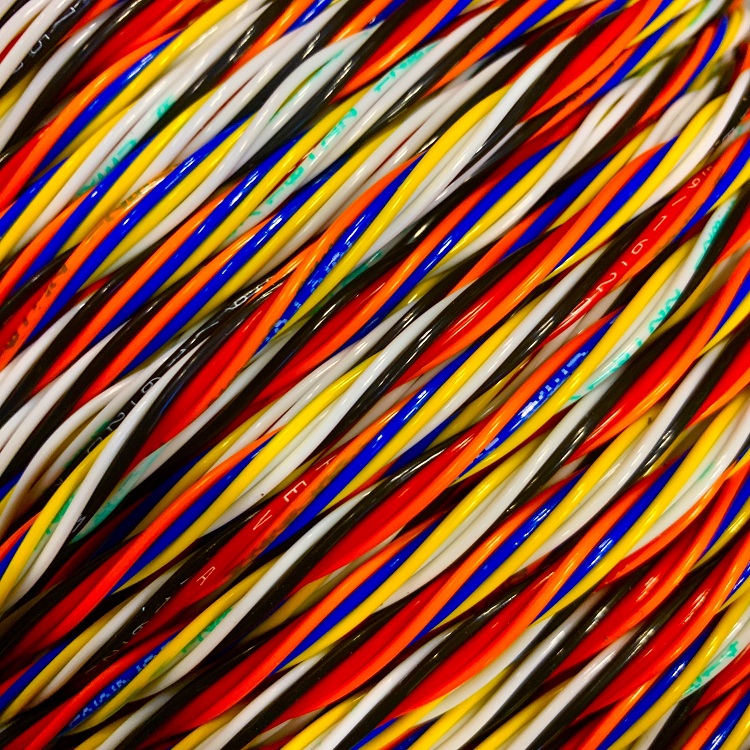

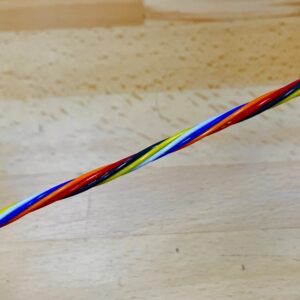

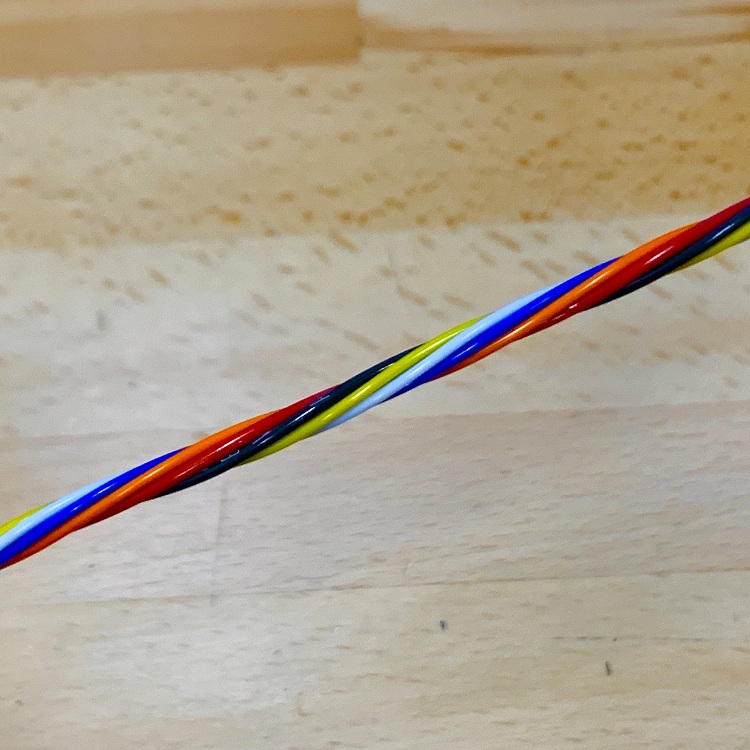

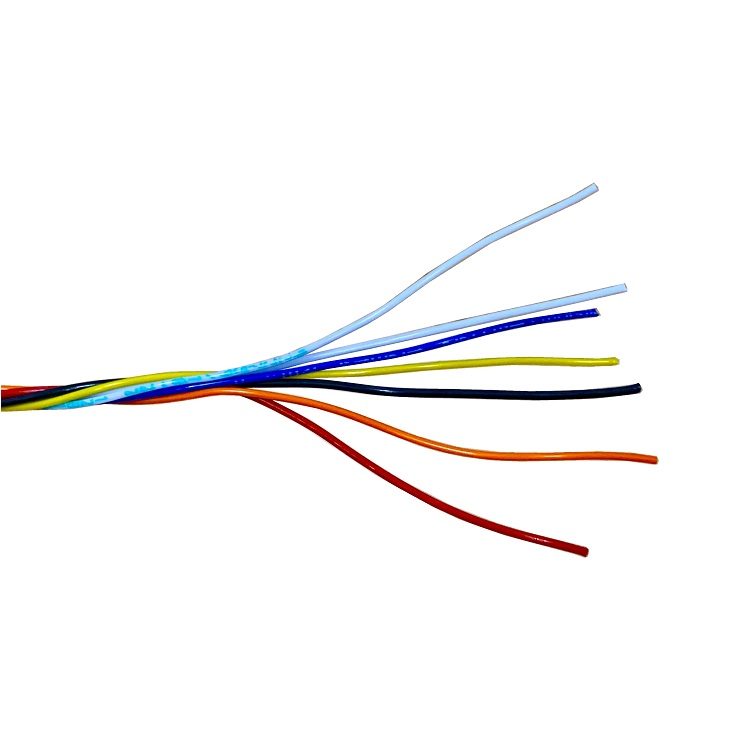

Twisted Bundle Contains:
AWG20 -Red (Power)
AWG20 -Black (Ground)
AWG22 -White
AWG22 -White
AWG22 -Orange
AWG22 -Blue
AWG22 -Yellow

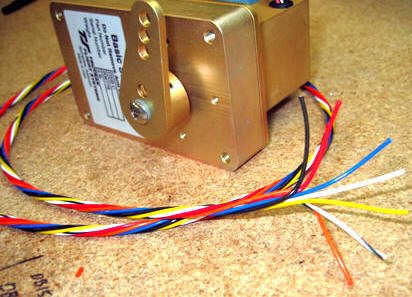

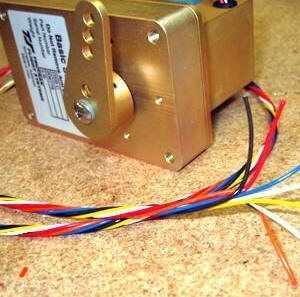

Colored Signal Wires for Servo (per TruTrak & SteinAir wiring harness specs)
*ALL wires are Mil Spec M22759/16 TEFZEL aircraft wire ! Note: if you use this wire for the pitch servo which, you’ll need to get one additional green Ga. 22 wire to run with this servo wire – for pitch only!
This was commonly used for servo wiring with the Trutrak Autopilot systems, GX Pilot Autopilot servos, and Sorcerer Autopilot servos.
22awg Tefzel wire is rated for 5 amps
20awg Tefzel wire is rated for 7.5 amps
