Dual USB Panel Jack

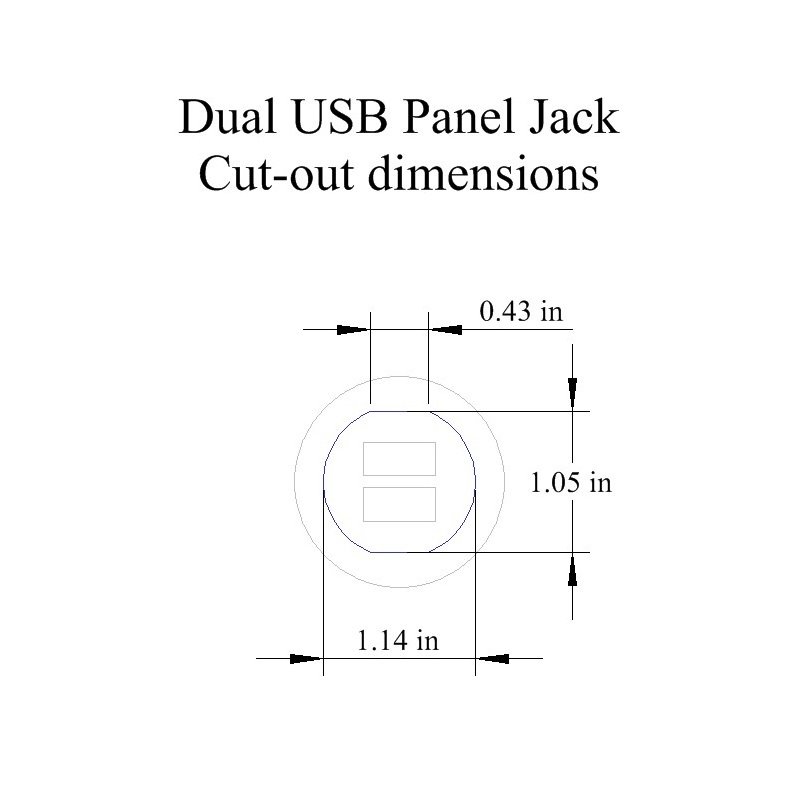

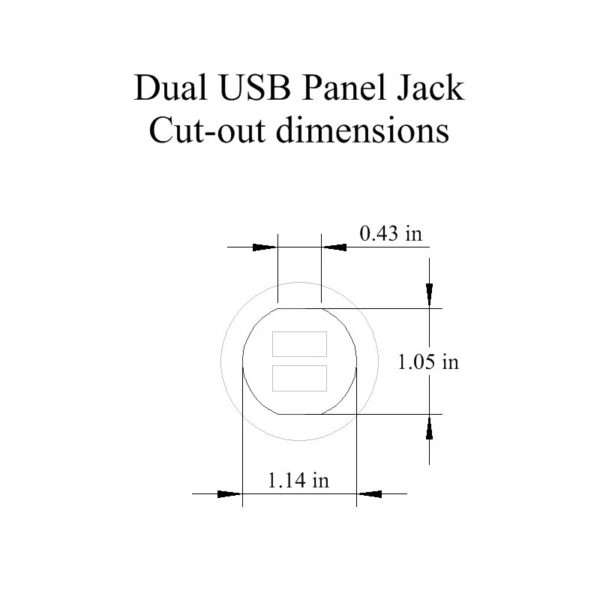

DUAL USB panel mount charging receptacle. 12-24 VDC. Output 5v @ 2.1A. Mounts in a 1 1/8inch hole.

For 12 volt and 24 volt DC electrical systems, 2.1 amps max.

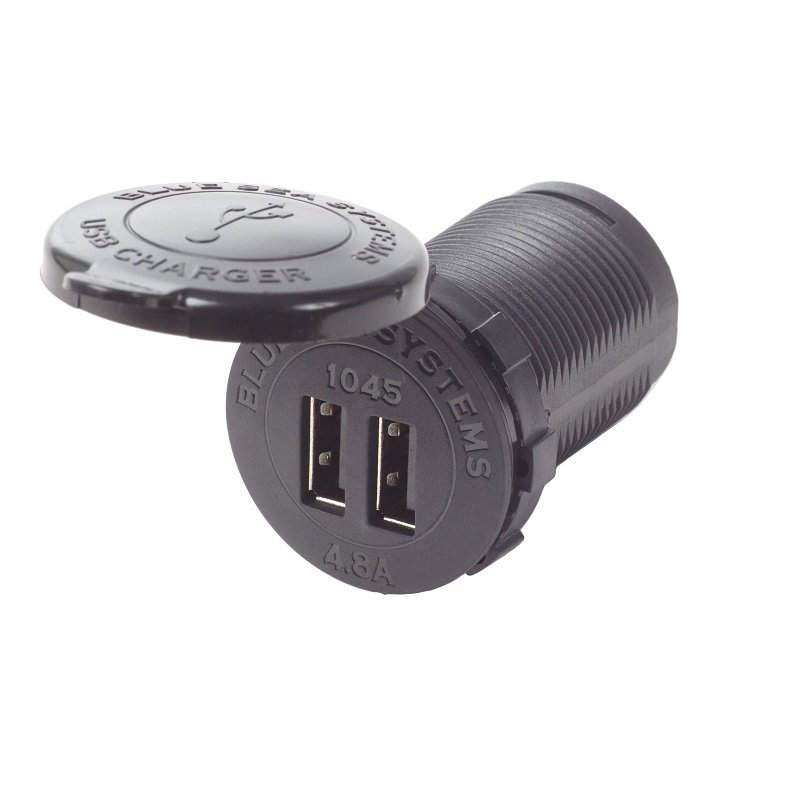

Two 5 volt 2.1 amp USB power jacks with an LED indicator.

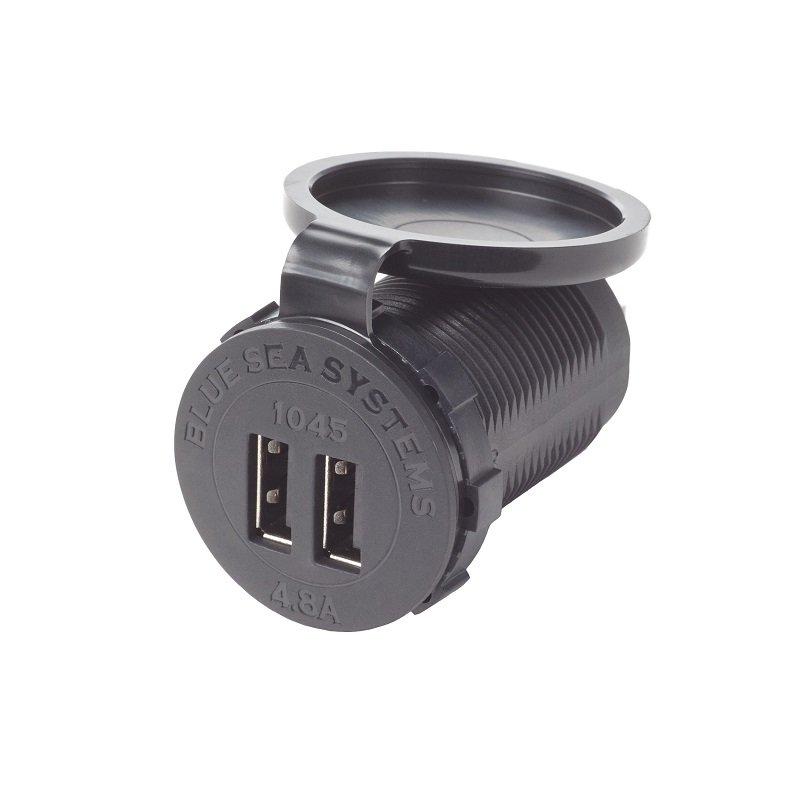

The splash proof cover is attached by a flexible molded hinge.

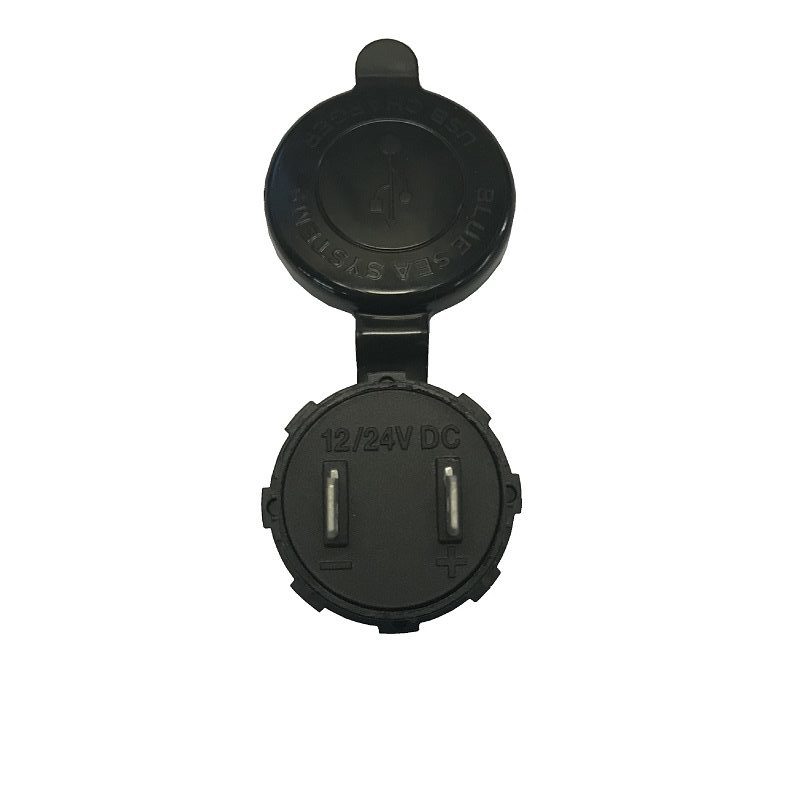

1/4 inch Fast-On tabs provided for power & ground connections.
Mounts in panels of 0.040 inch to 0.22 inch thickness.

Additional Information

Weight0.09 lbs
Dimensions2 x 1.5 x 1.5 in
