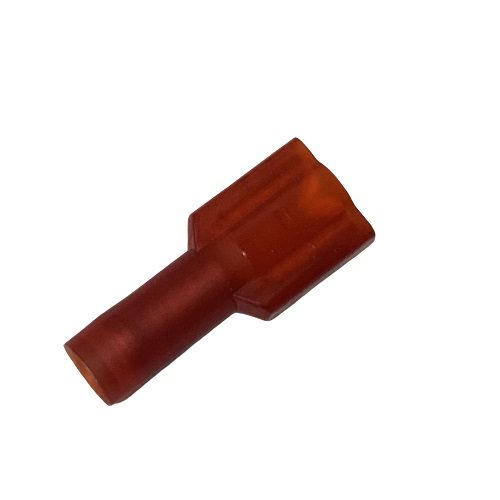

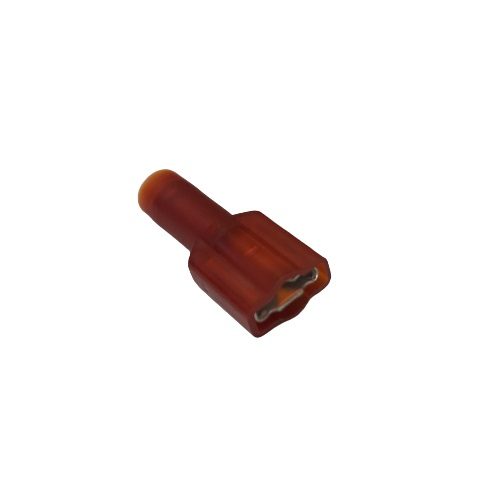

RED Fully insulated 22-18awg 1/4″ series* Fast-On QD receptacle crimp Terminal, Male.
The terminal accepts a 1/4″ wide x 0.032″ thick tabs.
These terminals are for stranded Tefzel type aircraft wires.
The RED color of the insulation indicates the 22-18awg wire size.
The funnel entry feature allows wire insertion without “turned back” wire strands.
The terminals are temperature rated for use from -40 to +105°C & rated for 300 volts.
Terminals are sold individually.
