Description

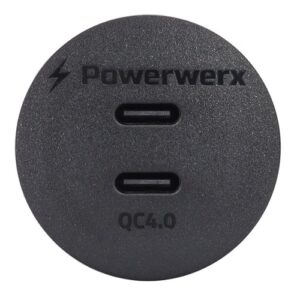

Compact panel-mount dual USB-C charger featuring two high-output ports—top port delivers up to 65W Power Delivery, while the bottom provides up to 45W for fast charging. Ideal for powering laptops, tablets, smartphones, and other USB-C devices. Built for durability and consistent high-speed performance.
Input: 12-24 VDC.
Recommended 7.5A circuit protection; circuit breaker or fuse.
The QC4.0 USB Type-C is capable of high output wattages for charging smartphones, tablets, and even laptops. Higher input voltages allow the USB Type-C to output upwards of 45W.
Cutout Dimensions Mounts in a 1 1/8 inch (29 mm) hole.
| Operating Voltage | 9-31V DC |
| QC4.0 Output (Top Port) | Up to 65W (at any input voltage) |
| QC4.0 Output (Bottom Port) | Up to 45W (with 24V input)
Up to 36W (with 12V input) |

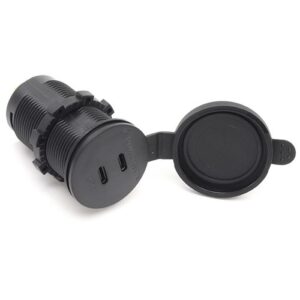

The splash proof cover is attached by a flexible molded hinge.
Protective cap keeps debris and moisture out.
Over temperature protection.
Reduced electronic interference.
Reverse polarity protection.
1/4 inch Fast-On tabs provided for power & ground connections.
Mounts in panels of 0.040 inch to 0.22 inch thickness.
