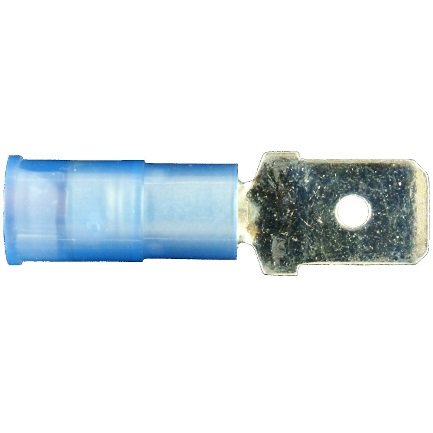

BLUE insulated 16-14awg 1/4″ series Fast-On QD tab crimp Terminal.
The terminal mates with 1/4″ wide x 0.032″ Fast-On receptacles.
These terminals are for stranded Tefzel type aircraft wires.
The BLUE color of the insulation indicates the 16-14awg wire size.
The funnel entry feature allows wire insertion without “turned back” wire strands.
The terminals are temperature rated for use from -40 to +105°C & rated for 300 volts.
3/8″ 2: 1 heat shrink tubing can be used for labeling over the terminals insulation.
Terminals are sold individually.
