Pos-12 Position Sensor

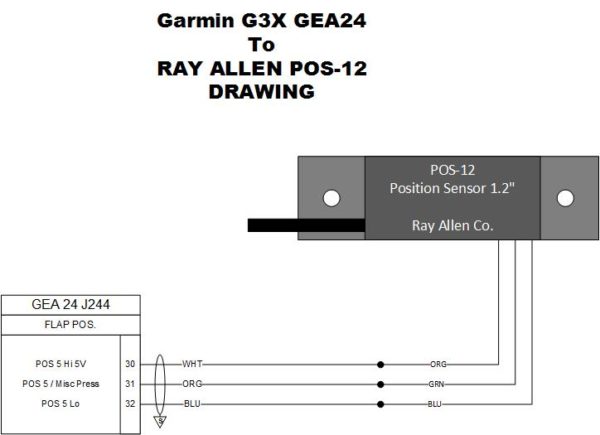

This position sensor is most commonly used for measuring flap and cowling travel. The position sensor gets wired to Ray Allen’s RP3 indicator. However, if you are using a glass panel, this position sensor would be wired to the position senors on your EIS module.

Made by Ray Allen:
The Ray Allen POS position sensor provides a signal for a RP3 indicator or a glass panel display by means of a sliding arm.
The sliding arm is connected to a 0-5K ohm pot. Install the position sensor where the arm can travel just under its full length.

See Ray Allen’s Instructions POS RP3 for more information.

Additional Information

Weight 0.1 lbs
Dimensions 3 x 2 x 1 in
