Pressure Manifold Aluminum Block

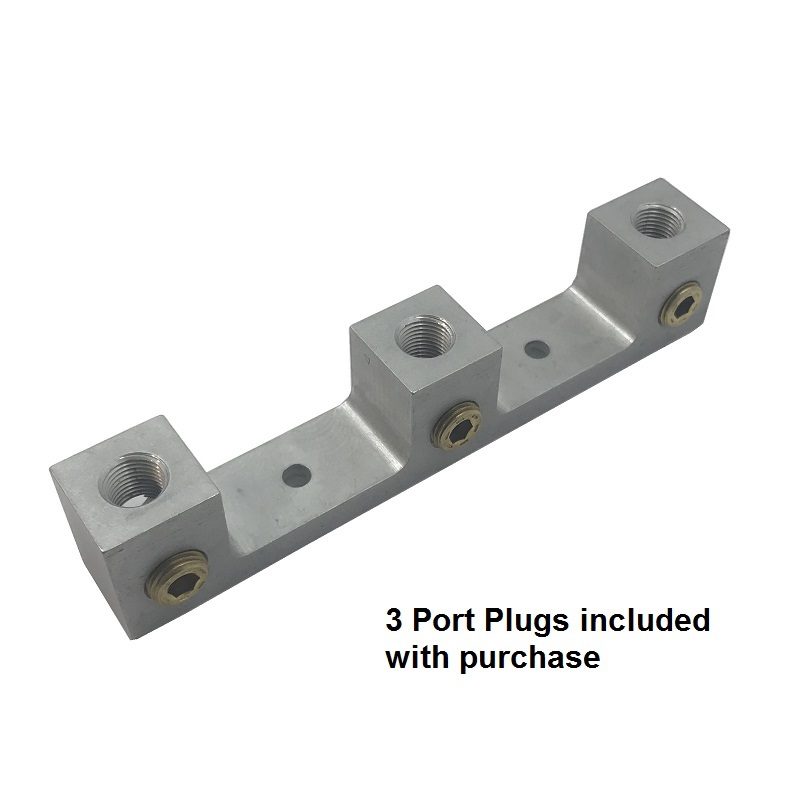

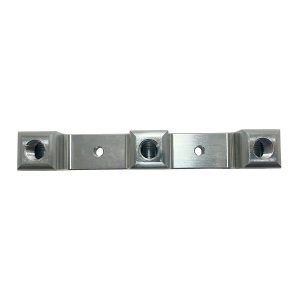

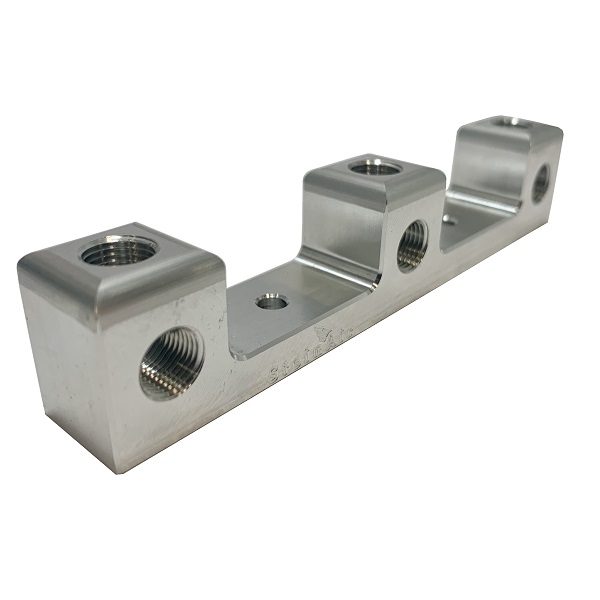

This aluminum pressure manifold provides a convenient firewall-mounted location for connecting aircraft engine oil and fuel pressure sensing systems. It allows pressure transducers and pressure switches to be mounted away from the engine, helping reduce their exposure to engine vibration.

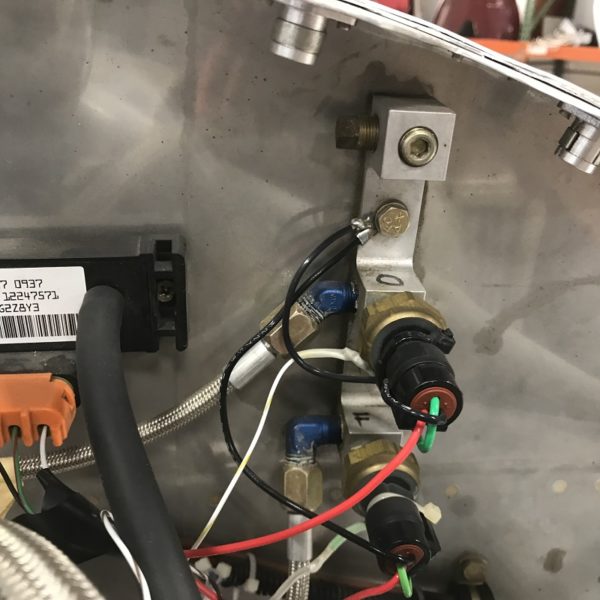

Each manifold section has three ports: one for the flexible pressure line from the engine, one for a pressure transducer, and one for a second transducer or pressure switch. Flexible hoses connect the engine pressure sources to the manifold, allowing the sensors to be mounted on the firewall rather than directly on the engine.
The manifold helps organize engine pressure connections in a neat, accessible location, simplifying installation and maintenance of your aircraft’s fuel and oil pressure monitoring systems.
Features
- Aluminum block for mounting engine pressure connections

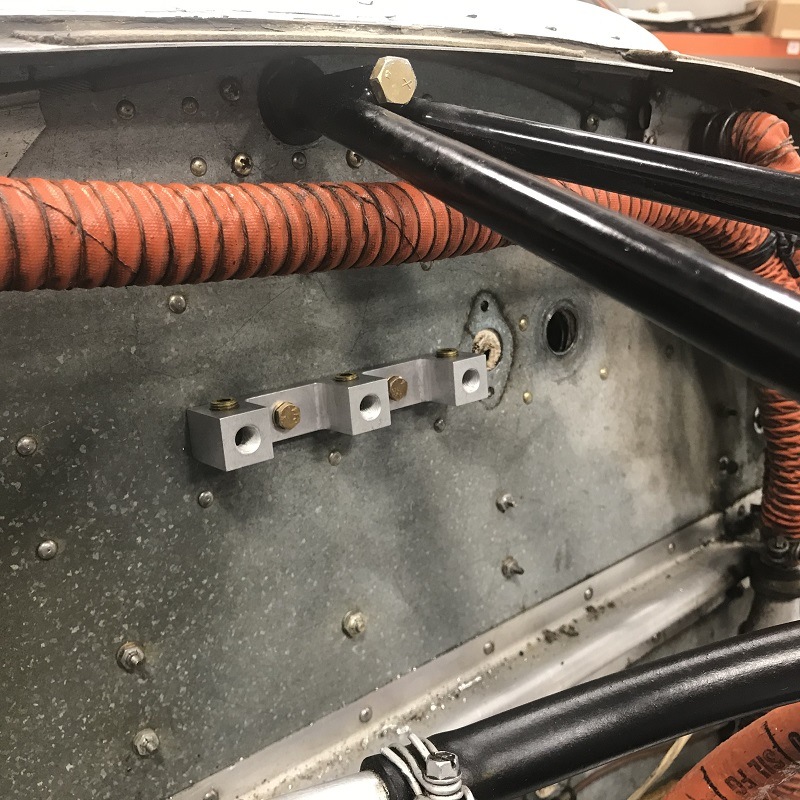

- Designed for firewall installation
- Three ports per manifold section
- Accommodates a flexible pressure line, pressure transducer, and additional transducer or pressure switch
- Helps reduce direct engine vibration exposure by allowing remote sensor mounting
- Includes three pipe plugs
- Additional pipe plugs available separately for unused ports
Mounting Details
- Mounting hole: #10 screw size (approximately 3/16 inch)
- Material: Aluminum
- Installation: Firewall-mounted

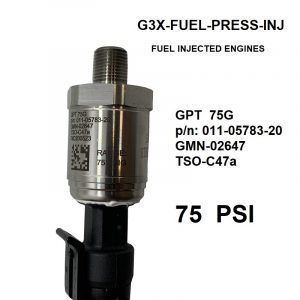

Note: Flexible hoses, pressure transducers, pressure switches, and additional pipe plugs are sold separately.
VA-168
