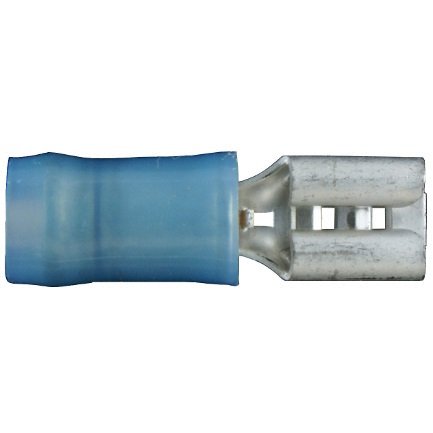

BLUE insulated 16-14awg 3/16″ series* Fast-On QD receptacle crimp Terminal.
The terminal accepts a 3/16″ wide x 0.020″ thick tabs.
These terminals are for stranded Tefzel type aircraft wires.
The BLUE color of the insulation indicates the 16-14awg wire size.
The funnel entry feature allows wire insertion without “turned back” wire strands.
The terminals are temperature rated for use from -40 to +105°C & rated for 300 volts.
3/16″ Fast-On receptacle terminals fit the AML 34 series rocker switches.
3/8″ 2:1 heat shrink tubing can be used for labeling over the terminals insulation.
Terminals are sold individually.
