IFD440 FMS/GPS Navigator
The IFD440 is a compact, yet powerful FMS/GPS NAV/COM for general aviation and helicopters. As a direct slide-in upgrade, the IFD440 can be installed using the same tray and connectors as the GNS430. Easy-to-use touchscreen interface with knobs and buttons including WiFi/Bluetooth® capabilities.
The popular IFD440 FMS/GPS/NAV/COM is a powerful, full featured navigator in a neatly designed package.
Avidyne’s IFD440 provides a plug-n-play touchscreen FMS/GPS/NAV/COM upgrade for GNS-equipped aircraft. Easy to use, easy to install, the IFD440 features all the power and capabilities of a next-generation panel mounted navigator.

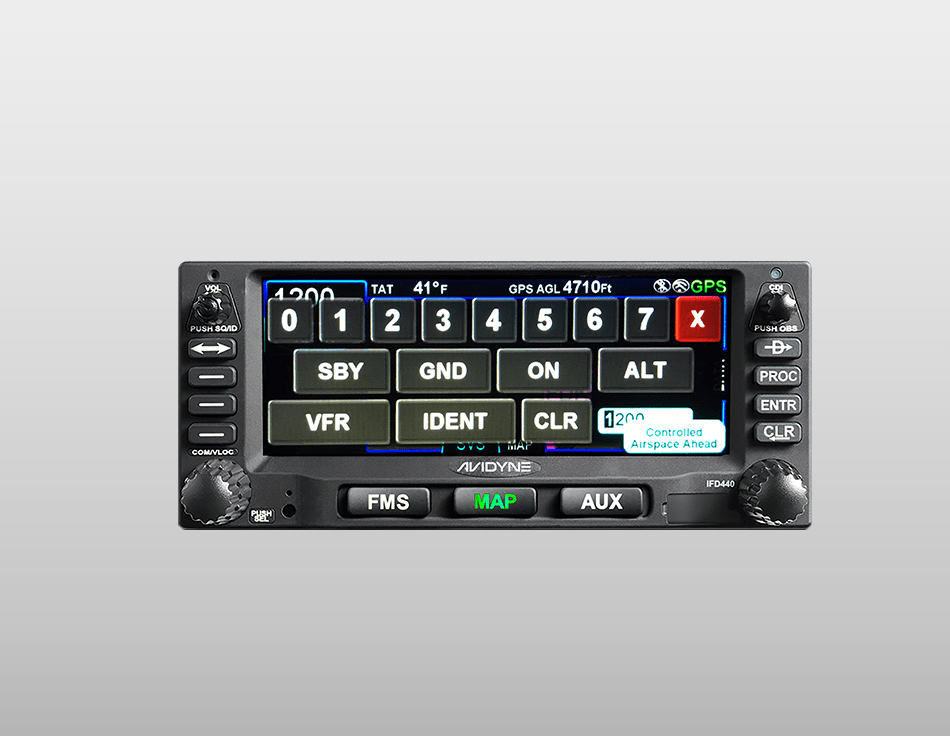

Hybrid Touch: Touchscreen with knobs and buttons.
Avidyne’s exclusive Hybrid Touch interface, touchscreen with knobs and buttons, allows you access to any page in the system within two clicks, turns or a simple push of a button. When touchscreen can become cumbersome in turbulent weather, knobs and buttons allow you to manage your mission quickly and easily.

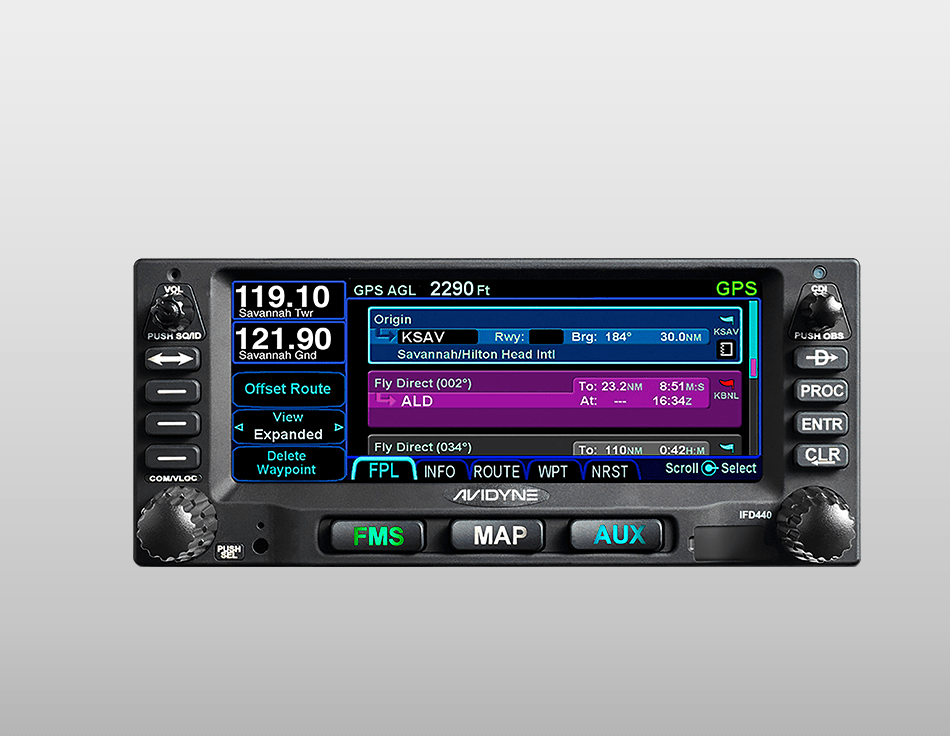

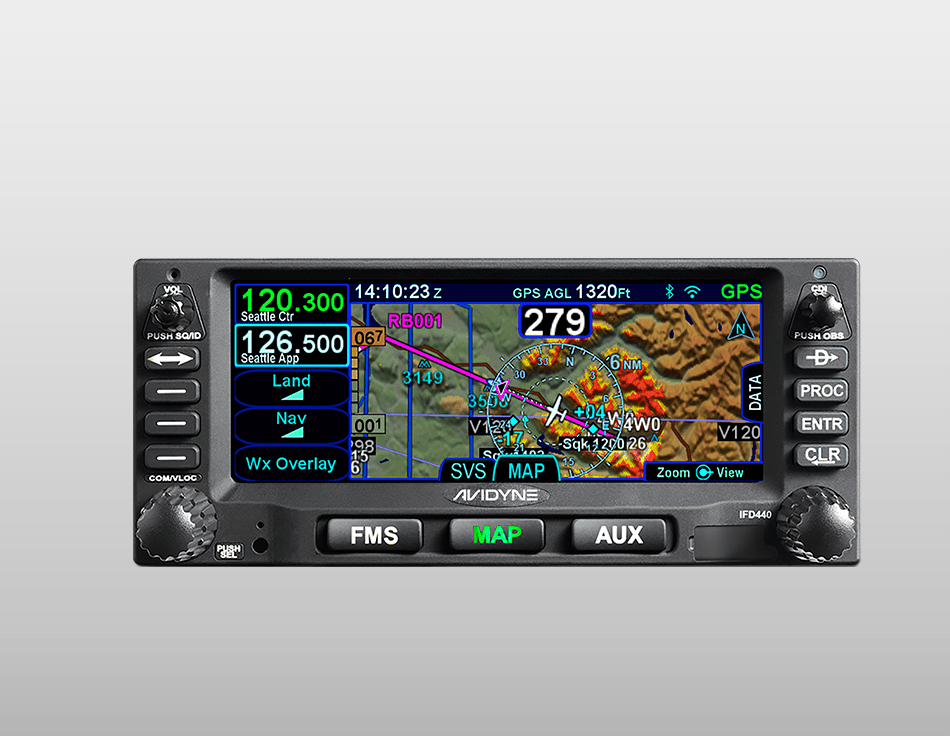

Simple Flight Planning
Flight planning has never been more simple. Drop down menus are logically placed to provide easy data entry of airways, exit points , destinations and approach procedures. To make flight planning even easier, the IFD440 can automatically create user-defined waypoints.
FMS Preview™ is a powerful flight planning features that allows you to load flight plans by showing you a real-time graphical depiction of each proposed modification in cyan prior to the selection. Visualize a desired waypoint, airway, hold or hold geometry, Direct To, approach, approach transition or any other terminal procedure before selection.
The convenient ‘rubber banding’ feature allows you to stretch any leg in the flight plan to easily deviate for weather or to accommodate an amendment from ATC.

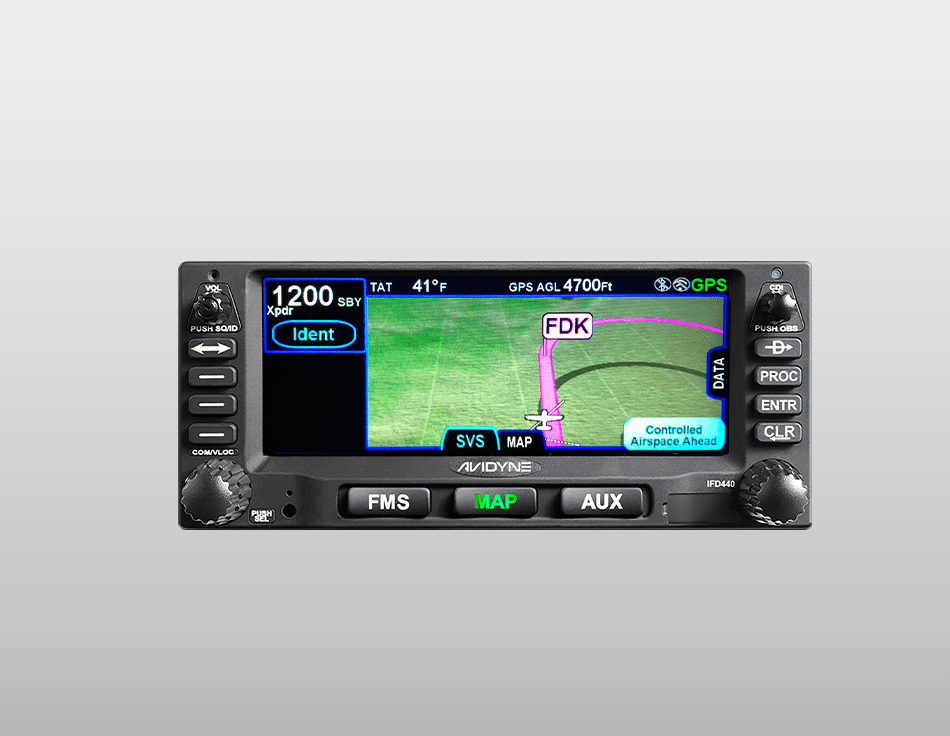

Synthetic Vision: Improved situational awareness.
All IFDs, including the IFD440, are equipped with Avidyne’s enhanced Synthetic Vision (SVS) for improved situational awareness. Synthetic vision is fully integrated and requires no additional boxes or wires.
3D Terrain
Terrain Awareness (SVS-TA) is provided via terrain coloration, providing visual Caution-Warning Alerting System (CAS) alerts and aural alerts terrain hazard awareness and alerting.
FLTA
Forward Looking Terrain Alerting (FLTA) alerting provides an extra measure of safety by displaying a solid yellow or red impact point based on projected flight path in the event that a collision with terrain is projected. FLTA also provides visual CAS messaging & aural alerting. (Optional on the IFD440)
3D Obstacles
Standard high, low and grouping symbology is used to clearly depict obstacles on the SVS display. 3D Traffic uses standard traffic symbology with traffic depictions indicating relative threat level by their size and relative altitude and bearing. As traffic draws nearer to you, the traffic symbols grow in size on the IFD.
Airport Flags
Airfields are depicted with a METAR-style flag when in field of view. With valid METAR data from your datalink, airfield flags will be color-coded to represent the ceiling and visibility, consistent with the moving map presentation.
WiFi and Bluetooth Connectivity
All IFDs are equipped with WiFi and Bluetooth capabilities. When enabled, the IFD440 easily connects to your iPad and the MK10 wireless keyboard providing pilots a convenient way to remotely operate the IFD system.
IFD100 iPad Application
Want big glass in your cockpit? Avidyne’s exclusive IFD100 application turns your iPad into another instance of your IFD! Flight planning has never been simpler. Not only does the IFD100 mirror the functions the IFD440 but acts as additional instance. Load, change and manage your flight plan right from your iPad. Monitor your map for weather and traffic, and view pages independently. The IFD100 display will give you big glass capabilities at a fraction of the cost.
Working Together
The IFD440 when paired with the IFD550 or in any combination, leverages Avidyne’s Byteflight databus architecture for cross-communication. In dual installations, the dual-databus architecture allows pilots to enter the flightplan on the familar QWERTY keyboard of one unit, while viewing the Map on the other.
The QWERTY keyboard automatically appears when an alpha-numeric data field is highlighted, making data entry as familiar to you as your computer or smart phone
Contact us for pricing
sales@steinair.com
651-460-6955
More Details
SPECS
Display (IFD550/540/545/510)
- 5.7” Diagonal w/Touch Screen
- Full VGA – 640 x 480 pixels
- 65,535 colors
- Ultrabright sunlight readable w/LED Backlighting
Dimensions (IFD550/540/545/510)
- Width: 6.30” (16.0cm)
- Height: 4.60“ (11.7cm)
- Depth: 11.00“(27.5cm) behind panel including connector
Weight (including tray and connectors)
- IFD440 – 6.88 lb (2.34 kg)
- IFD410 – 5.16 lb (3.99 kg)
- IFD550 – 9.19 lb (4.17 kg)
- IFD540 – 8.79 lb (3.99 kg)
- IFD545 – 7.48 lb (3.39 kg)
- IFD510 – 7.13 lb (3.23 kg)
Power Requirements
- 11 – 33VDC
- 4.4A/6.5A Xmit @ 14vdc
- 2.2A/4.0A Xmit @ 28vdc
VHF COM Power Output
- 10 Watts nominal
- Optional 16Watt (for 28vdc installations only)
Environmental
- DO 160E
- To 50,000 Ft
- -20C to +55C Operating
- +70C Short Term
Applicable TSOs
- TSO-C34e – ILS Glide Slope Receiving Equipment Operating within the Radio Frequency Range of 328.6-335.4 Megahertz (MHz)
- TSO-C36e – Airborne ILS Localizer Receiving Equipment Operating within the Radio Frequency Range of 108-112 Megahertz (MHz)
- TSO-C40c – VOR Receiving Equipment Operating within the Radio Frequency Range of 108-117.95 Megahertz (MHz)
- TSO-C44c – Fuel Flowmeters
- TSO-C110a – Airborne Passive Thunderstorm Detection Equipment
- TSO-C112e – Air Traffic Control Radar Beacon System/Mode Select (ATCRBS/Mode S) Airborne Equipment
- TSO-C113a – Airborne Multipurpose Electronic Display
- TSO-C118 – Traffic Alert and Collision Avoidance System (TCAS) Airborne Equipment, TCAS I
- TSO-C128a – Devices that Prevent Blocked Channels Used in Two-Way Radio Communications Due to Unintentional Transmissions
- TSO-C146d – Stand-Alone Airborne Navigation Equipment Using the Global Positioning System (GPS) Augmented by the Wide Area Augmentation System (WAAS).Airborne Supplemental Navigation Equipment Using the Global Positioning System (GPS) – Gamma 3
- TSO-C147 – Traffic Advisory System (TAS) Airborne Equipment – Class A (Display Functions Only)
- TSO-C157a – Aircraft Flight Information Services – Broadcast (FIS-B) Datalink Systems and Equipment
- TSO-C165 – Electronic Map Display Equipment for Graphical Depiction of Aircraft Position
- TSO-C169a – VHF Radio Communications Transceiver Equipment Operating Within The Radio Frequency Range 117.975 To 137.000 Megahertz – Class C, E, 3 and 5
COMPATIBILITY
This list is not exhaustive – click here for a full list of compatible equipment.
Air Data
- B&D 2600 ADC, 2601 ADC, 2800 ADC, 900004-003 ADC
- Bendix King KAD280/480 ADC (KDC 281,481)
- Shadin ADC 2000, ADC 200, ADC 200+, 8800T Alt Computer, 9000T Alt Computer, 9200T Alt Computer, 9628XX-X Fuel/ADC
- Insight TAS 1000 ADC
- Icarus Instrument 3000
- Sandia SAC7-35
- Garmin GDC74A
EFIS
- Avidyne EXP5000
- Bendix King EFS40/50
- Collins Proline 21, EFIS 84 (non-WAAS only)
- Honeywell Primus 1000
- Aspen EFD1000 Pilot PFD
- Garmin G5
- Garmin GI-275
Satellite Datalink Weather Interface
- Avidyne MLB700/WSI AV-300 Broadcast Datalink Receiver
- GDL69/A XM Broadcast Datalink using Baron Wx Services and XM® Satellite Receiver
Electronic Approach Charts & Airport Diagrams
- CMax™ – ™ Electronic Airway Manual Charts (IFD5XX Only)
- European VFR (Bottlang) Charts – optional
Lightning Interface
- Avidyne TWX670 Tactical Lightning Detection
- L3 WX-500 Stormscope® Weather Mapping Sensor
Wx Radar Systems
- Bendix/King RDR2000
Traffic Interface
- Avidyne SkyTrax600/605/610/615/620/A TAS/AXP322 TIS
- Ryan 9900B/BX TAS
- Honeywell KTA870/KMH880 TAS/IHAS/CAS66A TCAS I
- L3 Skywatch 497 / HP TAS/ 791 TCAS I
- Garmin GTS800/820 TAS/GTS850 TCAS I/ GTX330 TIS
ADS-B Interface
- Avidyne SkyTrax605A/SkyTrax615A/ SkyTrax620A (Traffic)
- Avidyne SkyTrax100
- Avidyne AXP340, AXP322
- L3-NGT 9000
- FreeFlight RANGR
- Garmin GTX330ES, GTX335, GTX345
Autopilot
- Avidyne DFC90
- Bendix King KFC400, KCP320, KCF325, KFC300, KFC275, KCF225, KCF250, KFC200, KCF150, KAP150, KAP140,KSP100
- Century I, II, III, IV, 21, 31/41, 2000, Triden, AK 1081 GPSS Converter
- Collins APC-65 Series, FGC-65, FYD-65
- STec 20, 30, 40, 50, 55, 55X, 60 PSS, 60-1, 60-2, 65, ST901 GPSS Converter
Audio Panel
- Avidyne AMX240
- Apollo (Garmin) SL10, SL15
- Garmin GMA 340, GMA 347
- PS Engineering 6000, 7000, 8000/8000BT
- Bendix King KMA24, KMA 26, KMA 28, KMA24H
Terrain Awareness
- Color-Contoured Terrain Base Map Built in
- Americas Terrain & US Obstacle Data
- International Terrain Data (optional)
Video Interface
- RS170 (optional)
406 ELT Interface
- Aviation RS-232
- NMEA 0183
Applicable TSOs
- TSO-C34e, TSO-C36e, TSO-C40c, TSO-C44c, TSO-C110a, TSO-C112e, TSO-C113a, TSO-C118, TSO-C128a, TSO-C146d, TSO-C147, TSO-C157a, TSO-C165, TSO-C169a
