Description

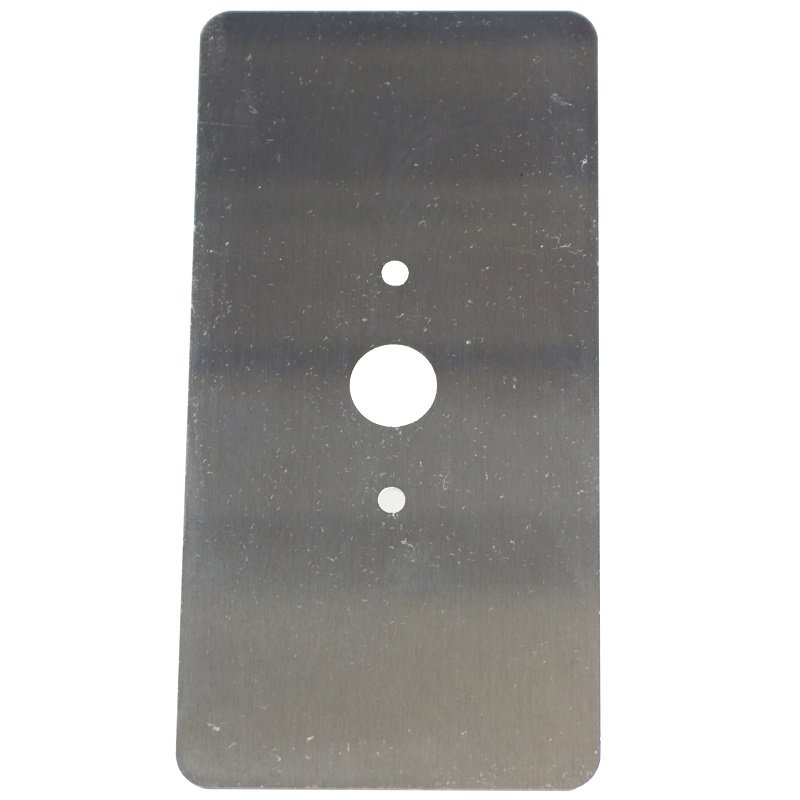

Comant CI-105 DME / Transponder Antenna Doubler
Provide a reinforced mounting surface for the Comant CI-105 DME / transponder antenna with this aluminum antenna doubler from SteinAir.
Designed specifically for the CI-105 mounting profile, this antenna mounting plate reinforces the aircraft skin around the antenna installation and helps distribute the mounting load across a larger area. The doubler is fabricated from 0.063-inch thick 6061-T6 aluminum and measures 3 × 6 inches.
The doubler provides a convenient way to reinforce the antenna mounting area from inside the aircraft, creating a solid mounting surface for the CI-105 antenna installation.
Specifications
- Material: 0.063-inch thick 6061-T6 aluminum
- Dimensions: 3 × 6 inches
- Application: Comant CI-105 DME / transponder antenna
- Type: Antenna doubler / mounting plate
- Purpose: Reinforces the aircraft skin at the antenna mounting location
Note: This product is an antenna mounting doubler manufactured by SteinAir. The Comant CI-105 antenna, avionics, and associated installation hardware are not included.
