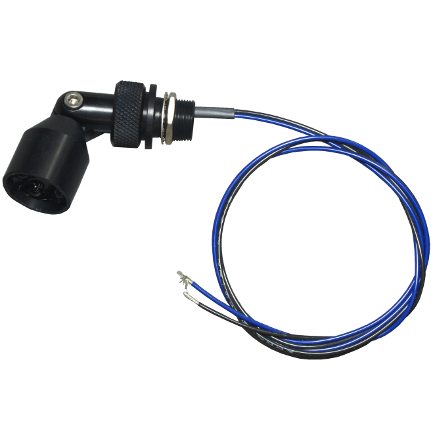

Easily installed, dimmable, unobtrusive and efficient, the MAPLIGHT-B-12v has four blue LEDs that illuminate simultaneously. This LED MAPLIGHT is compatible with all dimming systems. Each LED MAPLIGHT is manufactured and tested in accordance with FAA-PMA-approved protocols for quality assurance and customer satisfaction.
This 12-volt model is rated for 15 volts DC maximum at 30 milliamps (0.030amps) & is fully adjustable in two directions. The MAPLIGHTs black wire is ground & the other wire is + DC power.

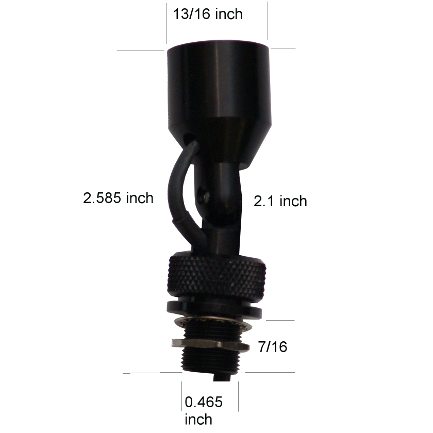

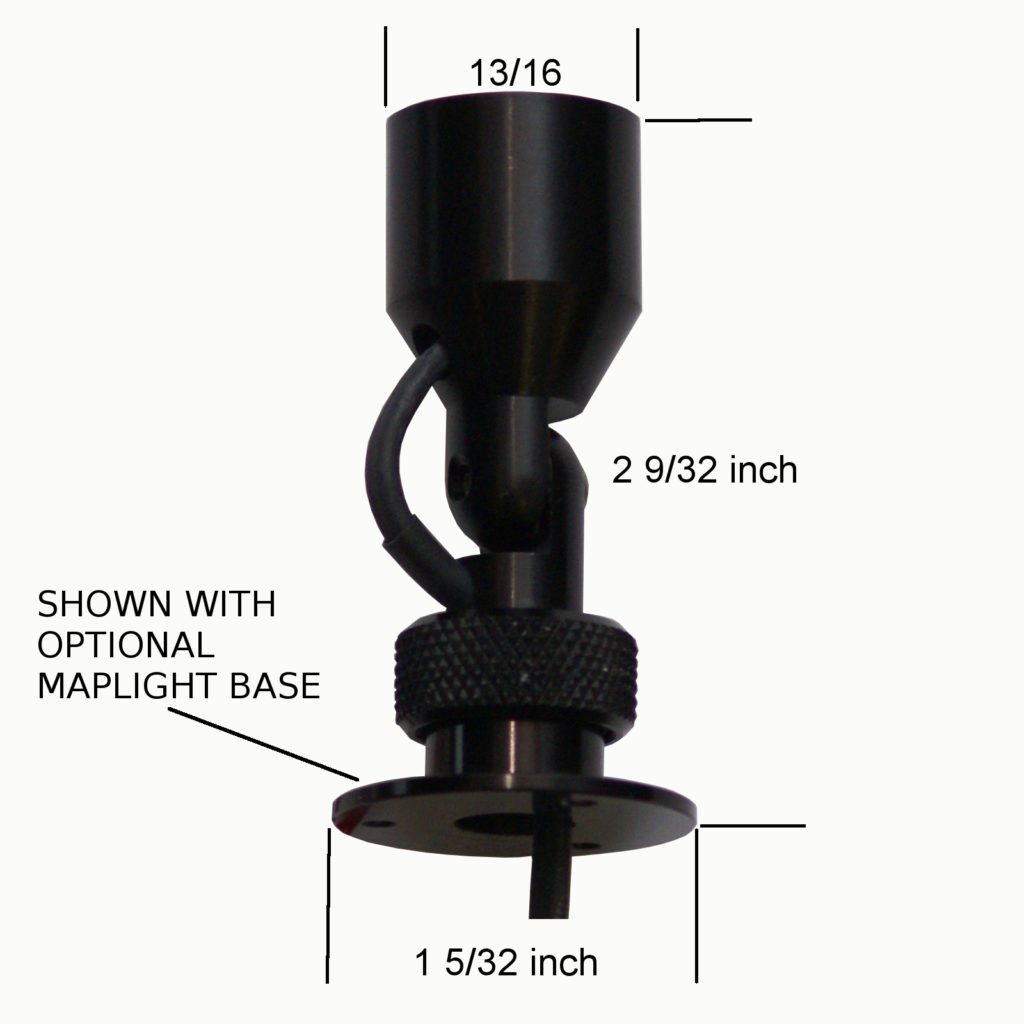

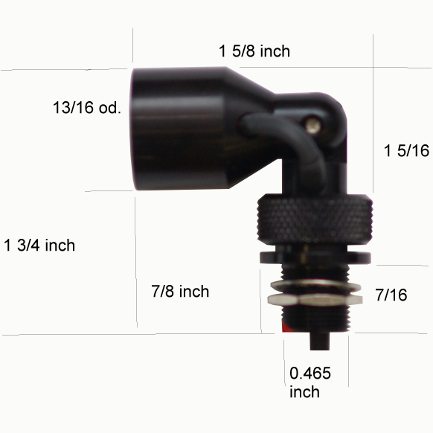

The total installed height when extended is 2.125″ & it mounts in 15/32” thru hole.
The wiring leads are 19inches long.
