Description
Flight Data Systems GD-40 Remote CO detector. The GD-40 is altitude and temperature compensated for an aircraft environment and will sense accurately at all altitudes and temperatures, non-aviation detectors are not. Secondly, The GD-40 monitors the integrity of its CO sensor throughout the lifetime of the sensor (up to 10 years) and will alert you when it is time for a new sensor and re-calibration.
Features:
-
Communicates Digitally with your EFIS
-
Monitors Cabin Pressure – Aural Alerts to remind you to don your Oxygen Mask
-
Calibrated Using Precision Gas – Each unit is individually calibrated and tested
-
Built in Self Test Monitors Sensor Quality – Continuous self testing for reliability
-
Altitude and Temperature Compensated – Has an internal Altimeter and Temperature Sensor
-
Remote Mounting Takes No Panel Space
-
Detects CO as low as 10 PPM
-
Calibrated up to 25,000′
-
Circulation Fan for Superior Performance
-
Sensor Lasts up to Ten Years Before Requiring Re-calibration
Four Ways to Alert:
-
Digitally through your EFIS
-

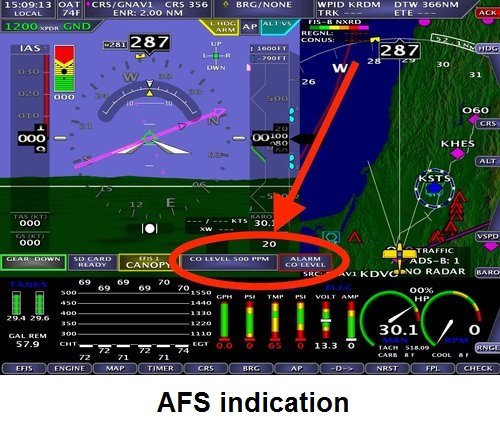

AFS
-

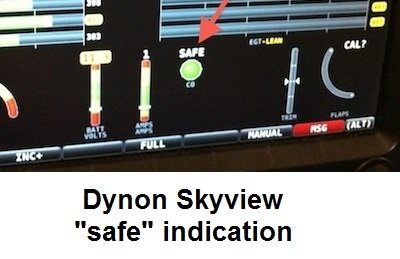

Dynon – via switched input
-

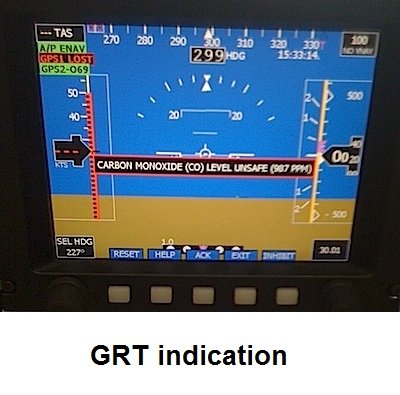

GRT
-

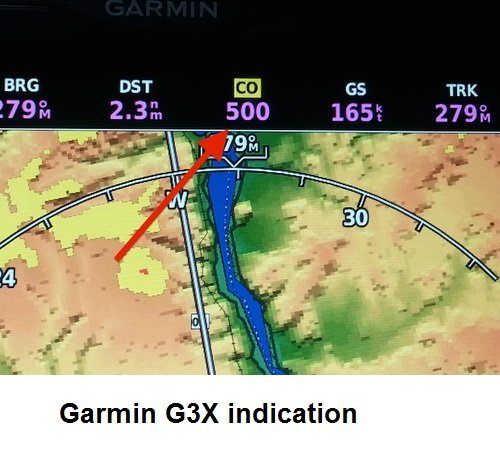

GARMIN
-

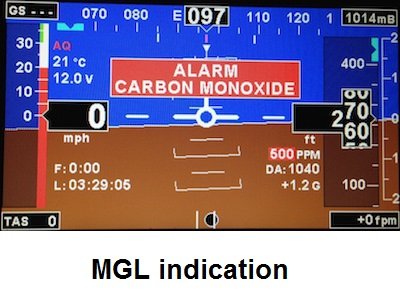

MGL
-
-
Aurally through your Audio System: “Danger Carbon Monoxide”
-
Via a Two Color LED
-
Via a switched relay to a Lamp, EFIS input or Tone Generator
Three Alert Levels:
-
Low: 50 to 100 PPM – Flashing green LED, Voice Alert: “Caution, Carbon Monoxide”
-
Medium: 100 to 400 PPM – Steady Red LED, Voice Alert: “Warning, Carbon Monoxide”
-
High: More than 400 PPM – Flashing Red LED, Voice Alert: “Danger, Carbon Monoxide”
Dimensions:
- 4.75″ x 3″ x 1″
