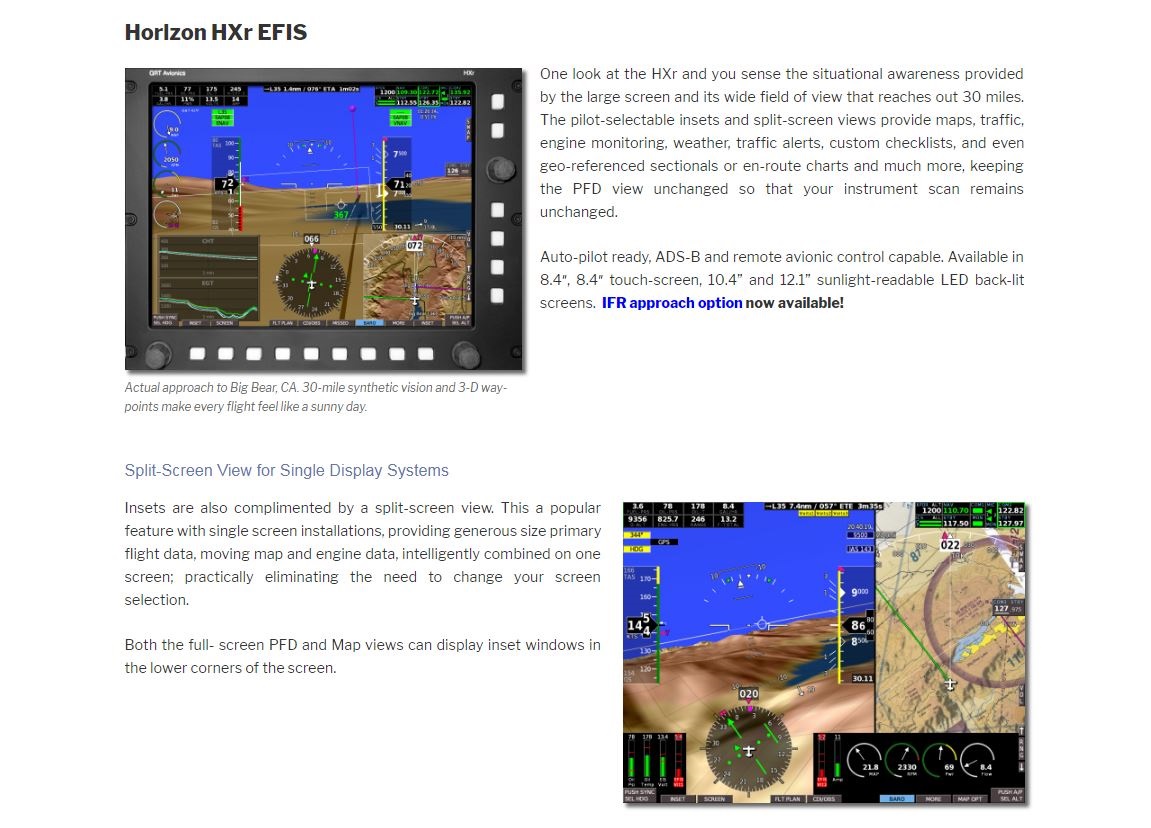

One look at the HXr and you sense the situational awareness provided by the large screen and its wide field of view that reaches out 30 miles. The pilot-selectable insets and split-screen views provide maps, traffic, engine monitoring, weather, traffic alerts, custom checklists, and even geo-referenced sectionals or en-route charts and much more, keeping the PFD view unchanged so that your instrument scan remains unchanged.

Auto-pilot ready, ADS-B and remote avionic control capable.

Every GRT Avionics display unit, from the first WS, through our HXr flagship, as well as the Mini-EFIS, is capable of performing as an autopilot control head. Just connect one or two servos and we will fly you from just after takeoff, to just before touchdown. We will couple you to your approach and fly you to your selected altitude…and much more!*

No servos? No problem! The flight director makes you the autopilot, combining attitude and navigation targets into a single cue that even a non-pilot can follow.

Available in 8.4″, 8.4″ touch-screen, 10.4” and 12.1” sunlight-readable LED back-lit screens.  IFR approach option now available!

Dual-Screen Optimized

Dual screens were never an after-thought. The HXr was designed from the beginning to function together, providing functionality and redundancy. Illustrated below-right is the moving map (with low-altitude en-route chart selected) with a generous set of engine data, including the exclusive EGT time history for easy visualization of engine abnormalities. Specific fuel consumption (SFC), another GRT Avionics exclusive, shows you when it is time to lean.


Dedicated Remote Avionics Controls

The HXr expands your options by letting you remotely control as much or as little of your radio rack as you desire. The dedicated controls and simple operation makes this immensely practical, leaving your valuable panel space available for other uses. Remote up to 2 Com radios, 2 Nav radios, transponder, intercom, and audio panel. Panel mount radios can also be conveniently tuned. The HXr works with a variety of leading avionics manufacturers, so you will never be locked into one brand for your interfacing remote avionics. Remotes, such as the Trig TT22 transponder, can offer a cost savings by negating the need for a dedicated control head.

As with the HX, the HXr allows you to use your Android device for extensive touch-screen menu tuning choices for you or your co-pilot.

Sectionals, Airport Diagrams, En-route Charts, Approach Plates, and more…

Sectionals, airport diagrams, en-route charts and approach plates can be displayed, with the airplane position geo-referenced on them. Sectionals and en-route charts are displayed with HXr generated airspace, obstacles, flight plans and traffic overlaid, so that alerting is not lost. Data for these functions is provided by Seattle Avionics.  The HXr also includes a PDF viewer which allows you to display free approach plates, airport diagrams and other data provided by the FAA. (Geo-referencing is not provided).

Engine Performance Monitoring

Having produced the EIS engine monitor for over 20 years, we’ve accumulated a great deal of personal and customer engine monitoring experience. From this came such exclusive features as the exhaust gas temperature (EGT) time history. With a simple graph of the last two minutes of all EGTs, our engine monitoring system makes it effortless to distinguish between engine problems affecting one cylinder, or the entire engine. This distinction could be essential when making decisions in response to engine problems, especially at critical times such as initial climb out. We find it so useful that we never takeoff without it displayed, and we recommend you don’t either.

As a practical matter, the EGT Time history is our favorite way to get reassurance of normal engine operation. Now whenever you fly over water, or at night, you will have the confidence that only comes from seeing a history of steady EGTs. It reduces anxiety and adds confidence to any flight.

CHT time history proves useful by making the trend obvious. This is especially useful in high-performance airplanes, such as RV’s, Lancairs and all pushers, where engine cooling can require some pilot technique to manage. It leaves no doubt which way temperatures are headed.

When it comes to flying economically, the specific fuel consumption (SFC) display is just the ticket. Its measure of engine efficiency confirms when you have leaned properly and tells you when you need to lean again. Without SFC, it is nearly impossible to know if re-leaning is required due to changing conditions. Next to the EGT time history, this is one of our favorite engine monitoring features. It literally pays for itself. Miles per gallon through the air makes it easy to detect changes in efficiency of your airplane due modifications for drag reduction or if you just forgot to fully retract your flaps. Miles per gallon over the ground lets you optimize your economy while accounting for the wind.

Engine Data with a Bonus

Engine data is provided to the HXr via the Engine Information System (EIS). The EIS is a complete instrument with a display and user-interface. Models are available for practically every engine, from 2-strokes, 4-strokes, turboprops and turbines-we have instrumented it. The EIS may be remotely mounted, just like any data collection device, but it can also be mounted in the instrument panel as a primary or backup display of engine data. In tandem seating airplanes it can be used as an instrument for the rear seat. Engine limits can be set in the EIS and can be used to drive its own warning light, even when remotely mounted.

Simple Operation

Simplified screen layouts and more buttons also allow for simplified operation. Menus are practically identical for the PFD and map screens. New to the EFIS and not sure what a softkey does? Go ahead-press it! Every softkey is labeled and the HXr shows you the options available before it does anything. Pressing the same softkey again exits without action. Always find your way back to the main screen view with the blue “HOME” softkey. Color coding and “hold for shortcut” features further streamline operation. Simple, effective and efficient.

Turbulence Optimized

When on the ground or in calm air, practically any pilot interface will work. Introduce turbulence and the story changes. To operate an EFIS in such conditions, the pilot must be able to position his fingers on the control (knob or button) without activating it. Activation of the control can then take place with assurance the intended operation will be performed. This is why the HXr does not have a joystick type control. It has high-tactile force knobs and buttons and a ledge above the buttons to steady your hand. It’s proven, and it works.

Real Redundancy

Redundancy will not be compromised in panel designed around the HXr. The extensive interfacing and processing power of the HXr allows dual inputs for attitude/air data, while still accommodating dual GPS and nav/com into every HXr display unit. Automatic cross-checking is provided, and rarely must data sources be divided among display units. Each device is wired directly to each display unit, creating a simple, robust connection for ultimate redundancy. Data buses are not used for communication between various devices, as these introduce the opportunity for a single point failure. Even dual data buses are subject to possible data overloading or other common mode faults that can simultaneously fail both buses (as has been experienced by one of our competitors).

Autopilot Ready

The HXr includes full autopilot functionality. Just add GRT servos and you are on your way to a fully automated cockpit. Like all GRT EFIS systems, it can also control an external stand-alone autopilot. Even without servos, all autopilot functions are available to drive the flight director, giving you a single cue to follow to control attitude and navigation, greatly improving accuracy while reducing workload. Read more here.

Already own an autopilot? Just wire it to the HXr, and the HXr will couple it to all your navigation sources.

Heads-Up Display Capable

heads up display can now be part your your GRT Avionics equipped airplane for as little as $300. Our pursuit of heads up display technology has led to support for the Hudly automotive after-market heads up display. Graphics optimizations in the GRT remote app, combined with the impressive readability and value of the Hudly have resulted in the first practical heads up display for experimental and general aviation (certified) airplanes.

  • Aircraft mounted heads-up display
  • Sunlight Readable Color Symbology
  • Primary Flight Data
  • Flight Director and HSI Guidance
  • Lateral/Vertical Deviation for Approach
  • Stall warning and all other features of GRT Remote app

PFD Video with Overlay

The HXr supports forward looking low-light or infrared cameras. Controls are provided to scale and align the video with the EFIS orientation. This allows the EFIS to draw outlines around runways and way-points, and also show the flight path marker correctly against the image from the camera. Video can also be displayed without an overlay, as might be desired for other camera views.

Audio Alerts

Voice alerts are provided for critical engine and flight conditions, as well as altitude call outs. System changes, such as autopilot disconnect and way-point passage are also annunciated. Angle-of-attack audio utilizes an attention-getting beeping tone that increases in urgency as your approach stall. You can even use your own audio recordings for your alerts.

Angle of Attack Sensing / Stall Warning

The GRT Avionics AOA function drives on-screen AOA symbology that shows too fast/too slow/optimal approach speeds, as well as stall warning. In addition, an audio output is providing an approaching stall warning annunciation (a pulsating tone that varies with proximity to the stall warning angle) and a solid tone indicating stall is imminent.

Sensing is via a two-port 45 degree pitot tube, such as those commonly available from a variety of manufacturers, or using a probe fashioned by the builder. This method has no moving parts, and allows the use of heated pitot tubes that preserve the stall warning function even in the presence of icing.

Control Radios and Flight Plans with Your Android Phone or Tablet

Install an optional Bluetooth dongle and connect with your Android phone or tablet using our GRT REMOTE App for Android. Fully control your connected radios, create & edit active flight plans and view the flight instruments all on your Android tablet or phone–perfect for the backseat co-pilot! The radio tuning portion of the app offers so much information, you may not want to tune them without it!

The Source of the Attitude

The integrity of an EFIS is dependent on the integrity of the attitude data that drives it. GRT Avionics has always lead the way with the only AHRS in the industry that can operate without airspeed or GPS aiding it. Read more about the latest generation of AHRS here.

Free Database and Software Updates

Navigation database updates are provided free for all US territories. Software updates are also free. All GRT equipment includes bootloaders, allowing them to be updated via USB without removing them from the airplane.

Generous Connectivity Options

Like our HX models, the HXr includes 8 serial ports in and out (one configurable as RS422), dual ARINC 429 in, ARINC 429 out (optional), and dual USB ports. Multiple display units are coupled via Ethernet. Analog interfaces include 8 analog inputs and 8 discrete outputs. We have the interfaces for your needs now and into the future.

We support that!

We are also kitplane builders and have always supported the spirit of experimental aircraft by providing the builder with as many options as possible. This is why we provide free HXr software support for the following equipment:

  • ADS-B (Traffic and Weather) including Radenna Skyradar, NavWorx, Dual XGPS170, iLevil
  • Multiple GPS Receivers (all types)
  • Garmin 400/500/600/700 Series Panel Mount GPS/Nav/Comm
  • RS-232 radios such as SL30/SL40
  • XM Satellite Weather
  • CO Guardian
  • TIS Traffic datalink (GTX330, Trig TT21/TT22)
  • Zaon Traffic
  • BF Goodrich WX-500 Stormscope
  • Vertical Power (All Models)
  • Tru-Track Autopilot
  • Trio Autopilot
  • TCAS systems

(If there is a device that you do not see on this list and you would like the HXr to interface with it, drop us a line! We are always willing to consider new devices, and thanks to the extensive interfacing and powerful processor within the HXr, future growth is built-in!)
