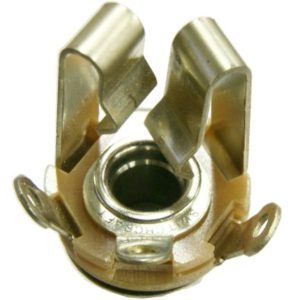

Standard Microphone Jack

SKU: SA-9912M

$5.95

Takes standard 0.205 inch microphone plug. These are quality microphone jacks with three circuit contacts work for stereo headphones. The insulation is high dielectric strength phenolic material. The circuit remains open until the headphone plug is inserted.

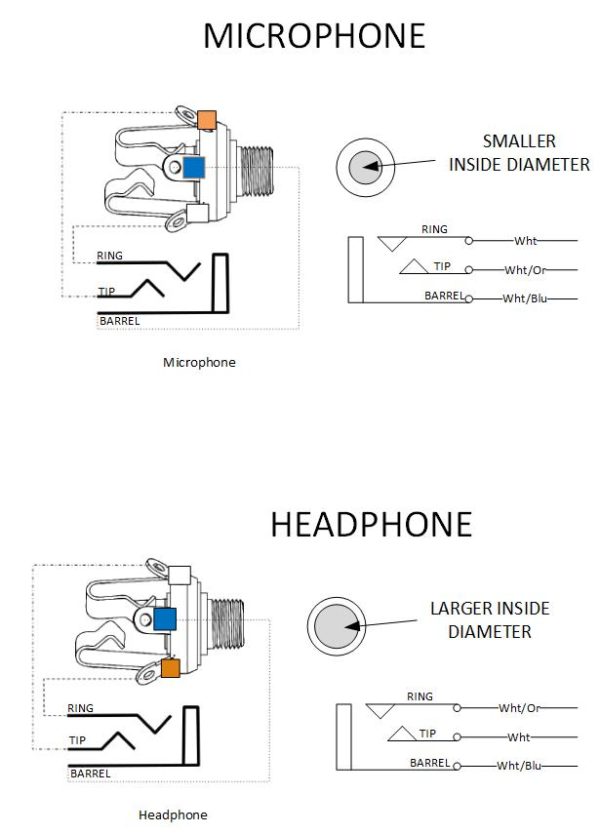

Headset Wiring Graphic

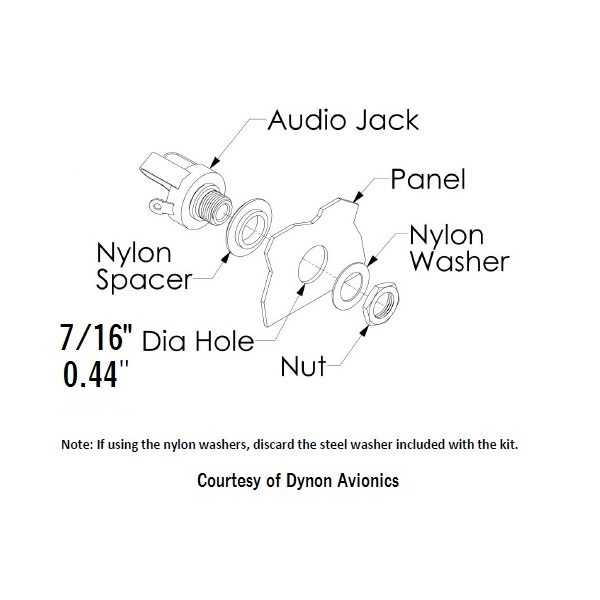

Fiber Washer Set Diagram



Additional Information

Weight0.025 lbs
Dimensions1 x .5 x .5 in
